Item # IPUSBD-16

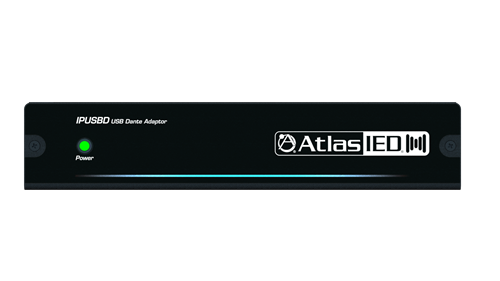

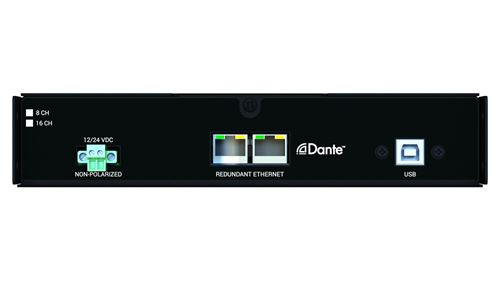

DANTE™ 16 X 16 USB INPUT/OUTPUT NETWORK AUDIO DEVICE
Click image to enlarge
Item # IPUSBD-16
DANTE™ 16 X 16 USB INPUT/OUTPUT NETWORK AUDIO DEVICE
- UM: EA
- Brand: ATLAS IED
The IPUSBD-16 Dante network audio device providing 16x16 input/output channels of digital audio to/from a USB port of a host computer to Ethernet. The Ethernet connection is auto-negotiated 100/1000MB via redundant RJ-45 ports. The USB port is compatible with USB 1.0 and 2.0 standards, and will work in USB 3.0 ports. USB 2.0 or higher port is required for more than 16x16 channels simultaneously, due to bandwidth limitations of USB 1.0.
Features:
- Supports Audinate’s Dante Digital Audio
- Compatible with AtlasIED GLOBALCOM.IP Systems and 3rd Party Dante Devices
- Provides Redundant Ethernet Ports
- LED Indicator for Power
- Can Be Powered from 12V or 24V DC Supply
| Voltage | 12V or 24VDC |
|---|---|
| Power Consumption | 3W MAX |
| Height | 1.75" (44mm) |
| Width | 8.5" (216mm) |
| Depth | 5" (127mm) |
| Warranty Period | 36 months from date of purchase |
