Item # IP-A1MP

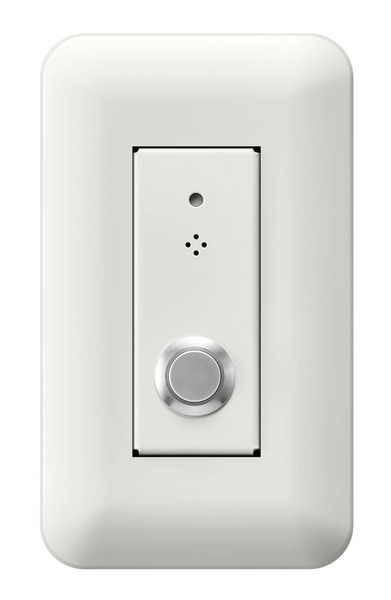

MICROPHONE PANEL,EQUIPPED WITH MICROPHONE/ACTIVATION SWITCH/STATUS INDICATOR
Click image to enlarge
Item # IP-A1MP
MICROPHONE PANEL,EQUIPPED WITH MICROPHONE/ACTIVATION SWITCH/STATUS INDICATOR
- UM: EA
- Brand: TOA ELECTRONICS
The IP-A1MP is a microphone panel that is equipped with a microphone, an activation switch and a status indicator. It can be installed with a standard electrical box as surface or flush mounting. This panel can be used as a two-way conversation or an audio monitoring microphone when used in conjunction with IP-A1 series devices.
Features:
- Audio accessory unit to be used in conjunction with IP-A1 series devices for having two-way
- conversations or audio monitoring
- Omni-directional electret condensor microphone
- Momentary type push switch to initiate a call
- Indicator lights during control input is being triggered
- 1 control input and 1 control output
- 1 electronically-balanced audio output (0dB, 200O)
- Surface or flush mounting with a standard electrical box
| Microphone | Omni-directional electret condenser microphone |
|---|---|
| Control Input | No-Voltage make contact input, open Voltage: 5 V DC, short-circuit current: 0.2 mA or less, push-in terminal block |
| Control Output | No-Voltage make contact output, withstand Voltage: 30 V DC, control current: 100 mA, push-in terminal block |
| Indication | Green (Lit during control input) (*2) |
| Operating Temperature | -20 °C to +55 °C(-4 °F to 131 °F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Front case: Surface-treated steel plate, white (RAL 9016 equivalent), semi-gloss, paint Rear case, bracket: Surface-treated steel plate, black zinc plating Plate: ABS resin, white (RAL 9016 equivalent), gloss |
| Dimensions | 44.6 (W) x 107 (H) x 29 (D) mm (1.76" x 4.21" x 1.14") (excluding projection) |
| Weight | 170 g (0.37 lb) |
| Included Accessories | Plate x 1, Plate mounting screw (M3.5 x 5.5, preinstalled on the plate) x 2, Box mounting screw (M4 x 35) x 2 |
| Recommended Box | Flush-Mount Box: YC-801 Wall-Mount Box: YC-802 |
