INTIMBEAM140SR | INTIMIDATOR BEAM 140SR
Item # INTIMBEAM140SR

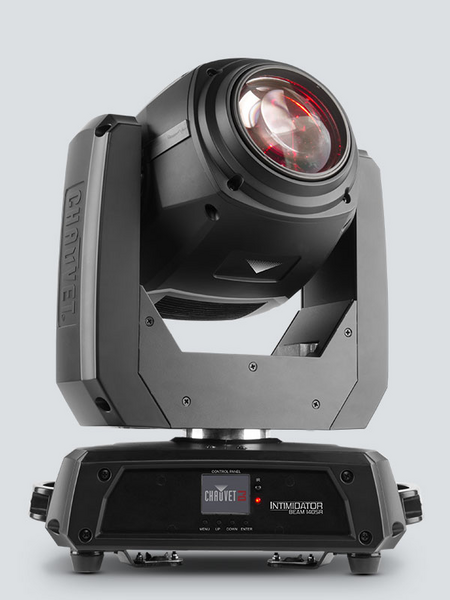

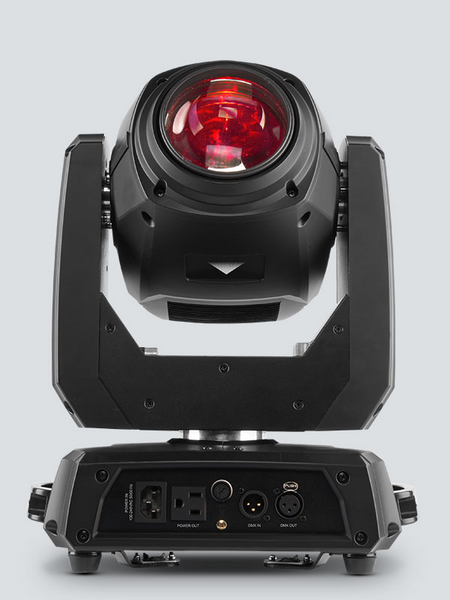

INTIMIDATOR BEAM 140SR
Click image to enlarge
Intimidator Beam 140SR is a cutting-edge moving head beam fitted with a bright 140 W discharge light engine. Its motorized frost filter converts the tight beam to a wide wash for different applications and an impressive 16-facet prism splits the beam and intensifies the display. The built-in totem mode keeps the light on and over the dance floor. Non-DMX control is available with the optional IRC-6 wireless remote. On-board power linking saves time running extension cords. A unique ¼-turn hanging bracket allows for single or dual clamp mounting options. Fits best in the CHS-50 VIP gear bag.
Features:
- Cutting-edge moving head beam fitted with an intense 140 W discharge light engine
- Impressive 16-facet prism splits the beam and intensifies the excitement;
- Motorized frost filter converts the tight beam to a wide wash for different applications
- Built-in totem mode keeps the light on and over the dance floor
- Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
- Non-DMX control with the optional IRC-6 wireless remote
- On-board power linking saves time running extension cords
- Motorized Focus
- Fits best in the CHS-50 VIP gear bag
| DMX Channels | 8 or 14 |
|---|---|
| DMX Connectors | 3-pin XLR |
| Pan and Tilt | 540°/270° |
| Pan and Tilt Ranges | 180°, 360°, 540° pan/90°, 180°, 270° tilt |
| Colors | 14 + white, split colors, continuous scroll at variable speeds |
| Gobos | 17 + open (all aluminum), fixed, continuous scroll at variable speeds |
| Light Source | (included): Osram Sirius HRI 140 W discharge lamp (6,000 hrs) (optional): Osram Sirius HRI 132 W discharge lamp (6,000 hrs) |
| Strobe Rate | 0 to 20 Hz |
| Beam Angle | (beam): 3°;(frost): 21° |
| Illuminance | (5 m): 381,500 lux(15 m): 37,900 lux |
| Lumens | 934 |
| Power Linking | 3 units @ 120 V; 6 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 228 W, 2 A @ 120 V, 60 Hz; 224 W, 1.2 A @ 230 V, 50 Hz |
| Weight | 25.8 lb (11.7 kg) |
| Size | 12.7 x 8.6 x 16.5 in (322 x 220 x 420 mm) |
| Approvals | CE, MET |
| Optional Controllers | IRC-6 |
| Prism | 16-facet round, bidirectional rotation at variable speeds |
