Item # IF-AN16/OUT
ANALOG OUTPUT CARD FOR DA-6400
Click image to enlarge
Item # IF-AN16/OUT
ANALOG OUTPUT CARD FOR DA-6400
- UM: EA
- Estimated Weight: 0.8
- Brand: TASCAM

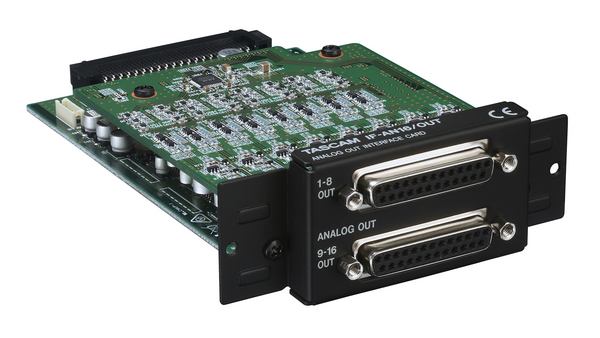

Supporting models : TASCAM Sonicview 24XP / TASCAM Sonicview 16XP / DA-6400 / DA-6400dp The IF-AN16/OUT is an optional 16-channel analog output interface card for the TASCAM expansion slot system. Equipped with two D-sub 25 pin for analog outputs.
Features:
- 16 channels of analog outputs
- Built-in output attenuation for each channel: 0 to -14dB (0.5steps)

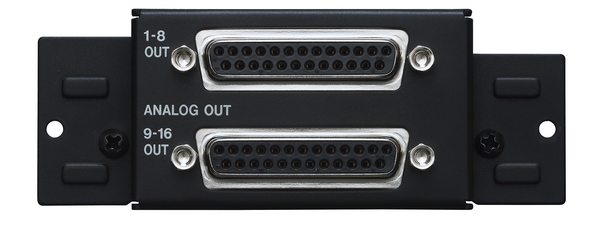

- Two 8-channel D-sub 25pin balanced audio signal outputs (channels 1-8 and 9-16)
- Compatible with the TASCAM Expansion Slot system
| Formats and channels | 16 channels at 44.1/48/88.2/96kHz, 16-bit/24-bit |
|---|---|
| Connector | D-Sub 25-pin |
| Locking screws | No. 4-40 UNC (inch type) |
| Nominal output levels | +4 dBu, +6 dBu (only when maximum output level is +15 dBu) |
| Maximum output levels | +24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu (Switched according to nominal level of device installed in) |
