Item # IED5400ACS
GLOBALCOM® 5400 SERIES ANNOUNCEMENT CONTROLLER
Item # IED5400ACS
GLOBALCOM® 5400 SERIES ANNOUNCEMENT CONTROLLER
- UM: EA
- Brand: ATLAS IED

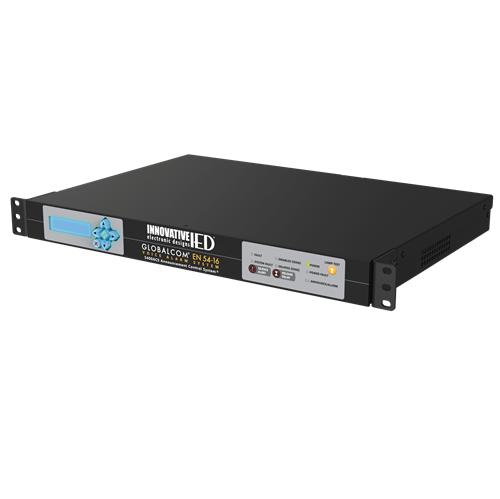

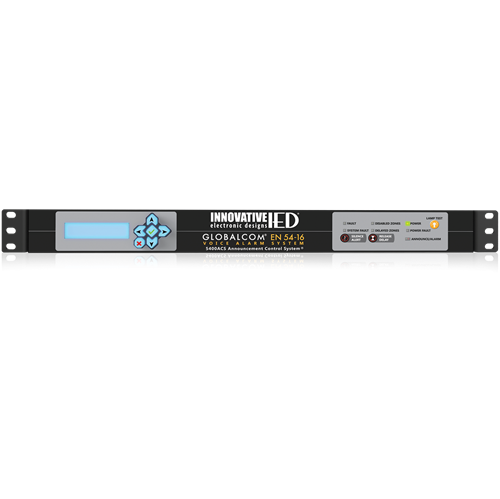

The 5400ACS is an integrated announcement controller with built-in message server capability that is the core of an EN54-16 compliance life/safety emergency notification system. These units contain all of the intelligence to manage an entire system of emergency communication stations, digital zone manager amplifier units, and other network peripherals. The 5400ACS manages the system in compliance with the EN54-16 standard, performing overall supervision and reporting of equipment faults plus any ongoing alarm conditions.
The 5400ACS is capable of interfacing with GLOBALCOM® 1100ACS/1200ACS units when additional non-emergency features or additional peripherals are required in an installation.
| Supply Voltage | 12 or 24 VDC |
|---|---|
| Operating Temperature Range | +32 ˚F – +104 ˚F (0 ˚C – +40 ˚C) |
| Input impedance | 10kΩ |
| Power Output | <1 Watt |
| Output impedance | 50Ω |
| Total Harmonic Distortion | <1% @ 1kHz |
| Power Consumption | Logic Active - 0.08 VDC Max |
| Power Consumption | Logic In-Active - 2 VDC - 3 VDC Max or Open |
| Height | 1.75", 4.4cm |
| Width | 17.2" (43.7cm) Without Rack Mount Ears |
| Depth | 12.25" (31.1cm) |
| Weight | 11.40 lbs. (5.17kg) |
| Storage Temperature Range | -4 ˚F – +158 ˚F (-20 ˚C – +70 ˚C) |
| Warranty Period | 36 months from date of purchase |
