The IED1544AIO-D is a 4-input (2 flow) x 4-output (2 flow) mic / line level analog pre-amplifier that converts analog audio signals to Dante® network

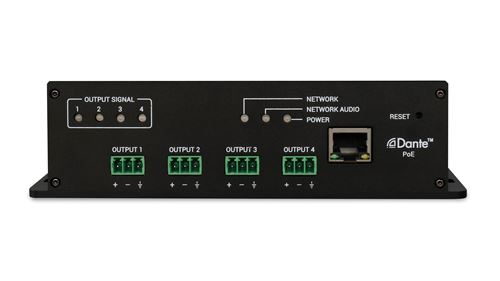

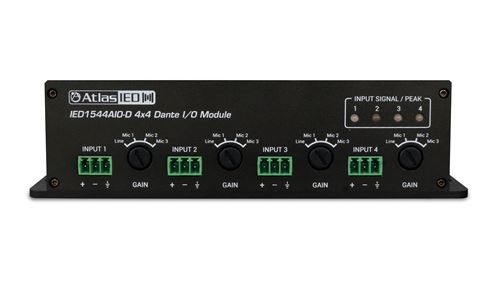

audio. Multiple channels of Dante® network audio can be transported over standard IP networks. The IED1544AIO-D 4x4 Dante® I/O Module features four analog balanced mic or line inputs (selectable) and four balanced line outputs. The four analog inputs are converted into Dante® network audio and can be routed via Dante Controller™. The four outputs convert Dante® digital audio received over the LAN into analog audio. There are indicators for network connection, network audio traffic, and power. Each input can be selected to Line or Mic level. In Mic mode, each input has 3 gain selections with Phantom Power. The IED1544AIO-D requires no external power supply. It is powered via a network PoE port or a PoE injector.

Features:

• Dante Digital Audio Platform
• Analog Line or Mic Level Input
• Convert Analog Mic/Line Audio to Dante Network Audio
• Convert Dante Network Audio to Analog Audio Out
• 48V Phantom Power
• Input Signal & Peak LED Indicators
• Independent Gain Selection on Each Input
• Analog Balanced Line Output
• Output Signal LED Indicators
• PoE Powered
