Item # IED1112PSD

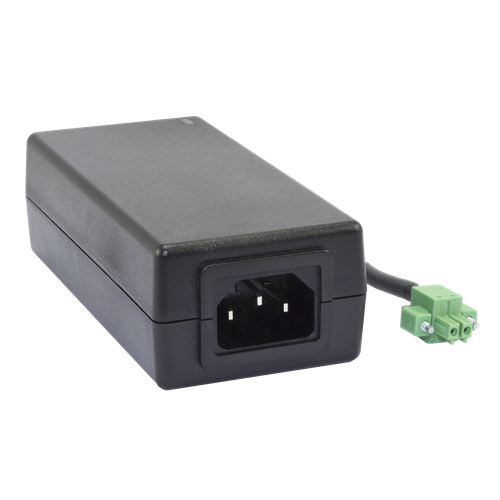

GLOBALCOM® 1000 SERIES SINGLE MODULAR POWER SUPPLY
Click image to enlarge
Item # IED1112PSD
GLOBALCOM® 1000 SERIES SINGLE MODULAR POWER SUPPLY
- UM: EA
- Brand: ATLAS IED
The 1112PSD is a small modular power supply designed to provide 12V DC power to individual GLOBALCOM devices. The 1112PSD is included as the default power module for the IED1100, IED1200, IP100 and IED1100DAB series devices. The module is capable of delivering up to 4 Amps of 12VDC power to a single GLOBALCOM device. The small form factor allows for a variety of mounting options for the module.
Features:
- Provides 12V DC to individual GLOBALCOM devices
- Internal current limiting to prevent equipment damage
- Over voltage and short circuit protection
- Efficiency >81% at full load
- Universal input voltage for worldwide use
- Small modular design
| Power Supply Voltage | 100 - 240VAC (50-60Hz) |
|---|---|
| Operating Temperature Range | 32 ˚F – 113 ˚F (0 ˚C – 45 ˚C) |
| Rated Input Current | 1.2 Amps Max |
| Rated Output Voltage | +12VDC (±1%) |
| Rated Output Current | 4 Amps |
| Storage Temperature Range | –4 ˚F – 185 ˚F (–20 ˚C – 85 ˚C) |
| Input Connector | IEC 60320 Type C-13 |
| Output Connector | 2-Pin Phoenix, 3.81mm Spacing |
| Height | 1.5" (3.8cm) |
| Width | 2.4" (6.0cm) |
| Depth | 4.7" (12.0cm) |
| Weight | 10.9 oz (310g) |
| Warranty Period | 36 months from date of purchase |
