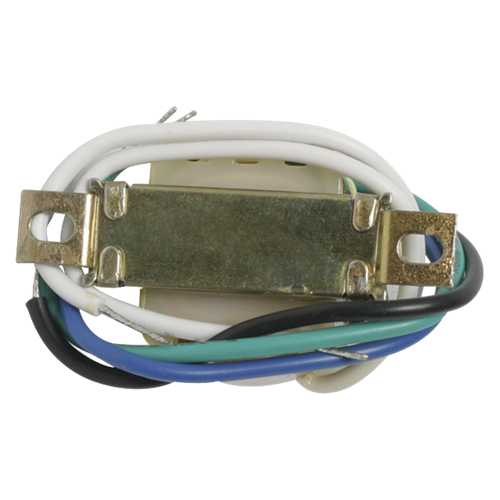

    HX33-4525 INTERCOM TRANSFORMER (45OHM, .5, 1 WATT)
    Click image to enlarge
    HX33-4525 INTERCOM TRANSFORMER (45OHM, .5, 1 WATT)

    Item # HX33-4525

    INTERCOM TRANSFORMER (45OHM, .5, 1 WATT)

    • UM: EA
    • Estimated Weight: 8.4
    • Brand: ATLAS IED

    HX-33-4525, specifically designed for use with intercom applications when connecting a 45ohm speaker to a constant voltage system. The small size of these transformers makes them ideal for use in compact spaces. The insertion loss will not exceed 1.5dB and the frequency response is +2dB from 150Hz - 9kHz. The primary taps are .5 and 1 watt. Secondary impedance is 45 ohms.

    Features:

    • 25V Line Matching Transformer
    • 5 & 1 W Taps
    • Intercom & General PA
    Height 1 3/16" (3.02 cm)
    Width 1 7/16" (3.65 cm)
    Depth 1/2" (1.19 cm)
    Shipping Weight 0.28 lbs (0.13 kgs)
    Warranty Period 60 months from date of purchase
