Item # HT87
HIGH-QUALITY 8W AUDIO TRANSFORMER 70.7V

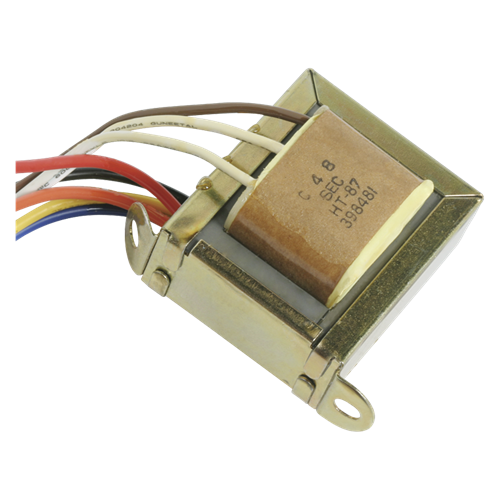

Click image to enlarge
Item # HT87
HIGH-QUALITY 8W AUDIO TRANSFORMER 70.7V
- UM: EA
- Estimated Weight: 6.5
- Brand: ATLAS IED
The HT87 is a Industry standard, high quality transformer with audio grade laminations.
The unit offers low insertion loss (not to exceed 1.0dB) and full-range frequency response
Features:
- Constructed with Audio Grade Laminations
- Frequency Response is 50Hz - 15KHz
- High Quality Matching Transformer with Only 0.6dB Insertion Loss
- Primary Taps of 1, 2, 4, & 8 Watts
| Frequency Response | 50Hz - 15KHz |
|---|---|
| Power Rating | 8 Watts |
| Secondary Impedance | 4Ω and 8Ω |
| Power Taps | 1, 2, 4 & 8 Watts |
| Primary Voltage | 70.7V |
| Height | 2 3/8" (6.0325 cm) |
| Width | 1.969" (5.00126 cm) |
| Depth | 1 1/16" (2.61874 cm) |
| Warranty Period | 60 months from date of purchase |
Documents
×
