Item # HT47
HIGH-QUALITY 4 WATT AUDIO TRANSFORMER 70.7V

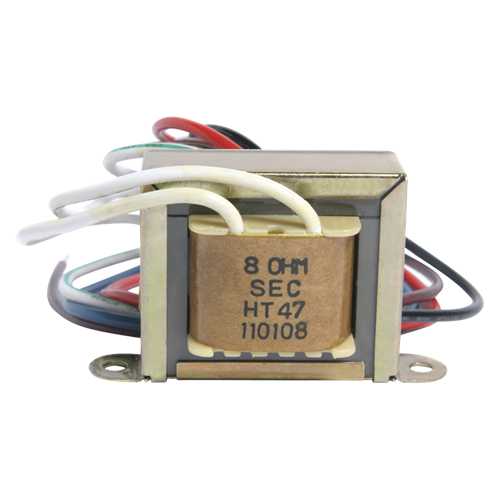

Click image to enlarge
Item # HT47
HIGH-QUALITY 4 WATT AUDIO TRANSFORMER 70.7V
- UM: EA
- Estimated Weight: 0.7
- Brand: ATLAS IED
The HT47 is a Industry standard, high quality transformer with audio grade laminations. The unit offers low insertion loss (not to exceed 1.0dB) and full-range frequency response (+1dB from 60Hz - 12kHz).
Primary taps are .5, 1, 2 and 4 watts. Secondary impedance is 8 ohms. Model HT-47 is designed for use with 70.7-volt lines.
Features:
- Constructed with Audio Grade Laminations
- Designed for Use on 70 Volt Lines
- Frequency Response is 60Hz - 12KHz
- High Quality Matching Transformer with Only 1.0 dB Insertion Loss
- Primary Taps of .5, 1. 2. & 4 Watts
| Frequency Response | 60Hz - 12KHz |
|---|---|
| Power Taps | .5, 1, 2 & 4 |
| Power Rating | 4W |
| Primary Voltage | 70.7 |
| Height | 1 5/8" (4.1275 cm) |
| Width | 1.969" (5.00126 cm) |
| Depth | 3/4" (1.82626 cm) |
| Shipping Weight | 1.02 lbs (0.46 kgs) |
| Warranty Period | 60 months from date of purchase |
