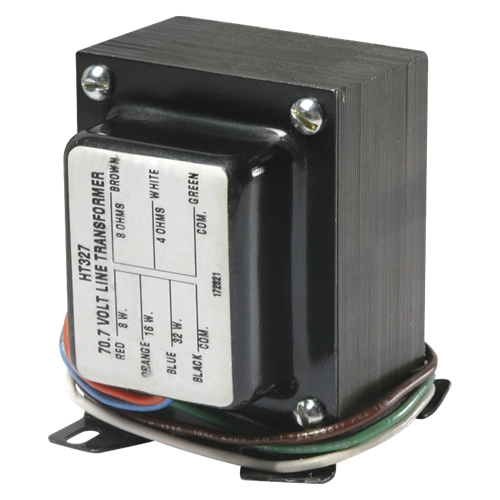

Item # HT327
HIGH-QUALITY TRANSFORMER 32W (70.7V) / POWER TAPS AT 8, 16 & 32W WITH SECONDARY IMPEDANCE OF 4 & 8O
Item # HT327
HIGH-QUALITY TRANSFORMER 32W (70.7V) / POWER TAPS AT 8, 16 & 32W WITH SECONDARY IMPEDANCE OF 4 & 8O
- UM: EA
- Estimated Weight: 4.8
- Brand: ATLAS IED
The HT327 features high power handling with minimal insertion loss and wide frequency response to provide quality line matching of speakers in high power systems.
Unit is constructed of audio grade laminations and offers primary taps at 8, 16 and 32 watts with secondary impedance of 4 and 8 ohms.
Insertion loss does not exceed 0.6dB and the unit operates within a frequency range of +1dB from 30Hz - 15kHz.
The transformer is designed for external mounting to surfaces other than the speaker.
Features:
- Constructed with Audio Grade Laminations
- Frequency Response is 30Hz - 15KHz
- High Power Handling Unit
- High Quality Matching Transformer with Only 0.6dB Insertion Loss
- Primary Taps of 8, 16, & 32 Watts
- Secondary Outputs Offer Both 4 & 8ohm Impedance
| Frequency Response | 30Hz - 15KHz |
|---|---|
| Power Taps | 8, 16 & 32 |
| Power Rating | 32W |
| Primary Voltage | 70.7 |
| Height | 3 1/4" (8.255 cm) |
| Width | 2 1/2" (6.35 cm) |
| Shipping Weight | 3.50 lbs (1.59 kgs) |
| Warranty Period | 60 months from date of purchase |
