Item # HT167
HIGH-QUALITY TRANSFORMER 16W (70.7V)

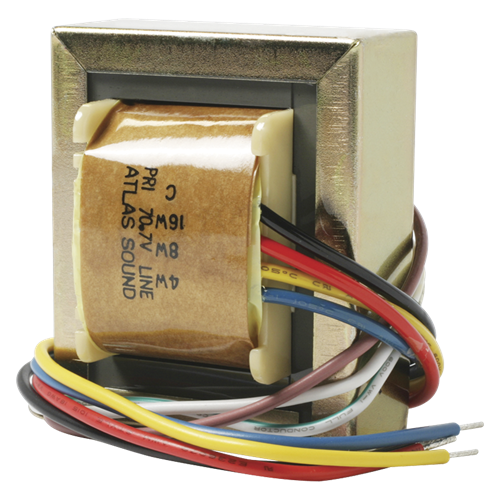

Click image to enlarge
Item # HT167
HIGH-QUALITY TRANSFORMER 16W (70.7V)
- UM: EA
- Estimated Weight: 5.0
- Brand: ATLAS IED
Model HT167 high quality line matching transformer features 0.6dB insertion loss to assure efficient speaker matching in distributed 70.7-volt systems.
Unit is constructed of audio grade laminations and has primary taps at 4, 8 and 16 watts. The secondary impedance is 4 and 8 ohms.
Frequency response is +1dB from 40Hz - 15kHz.
Features:
- Constructed with Audio Grade Laminations
- Frequency Response is 40Hz - 15KHz
- High Quality Matching Transformer with Only 0.6dB Insertion Loss
- Primary Taps of 4, 8, & 16 Watts
- Secondary Outputs Offer Both 4 & 8ohm Impedance
| Frequency Response | 40Hz - 15KHz |
|---|---|
| Power Taps | 4, 8 & 16 Watts |
| Power Rating | 16W |
| Primary Voltage | 70.7 |
| Height | 3 1/8" (7.9 cm) |
| Width | 2 9/16" (6.5 cm) |
| Depth | 1 3/32" (2.8 cm) |
| Shipping Weight | 2.50 lbs (1.13 kgs) |
| Warranty Period | 60 months from date of purchase |
