Item # HP890I-WH

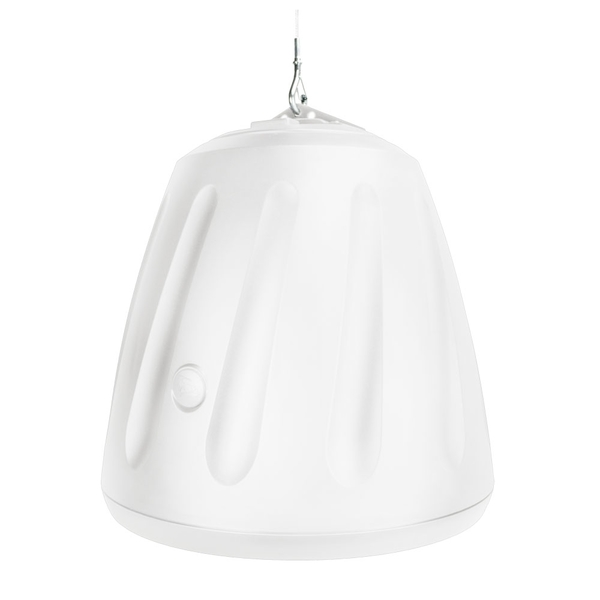

8" COAX PENDANT SPEAKER, WHITE
Item # HP890I-WH
8" COAX PENDANT SPEAKER, WHITE
- UM: EA
- Estimated Weight: 32.0
- Brand: SOUNDTUBE
Patented BroadBeam Ring waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. One 8 inch treated fiber woofer and one 1.42 inch compression driver (1.0 inch exit) mounted to a proprietary cast-aluminum baffle and heat sink. High output and 120-watt transformer for the sound reinforcement and PA markets. Patented ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity. Easy-access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Includes hanging hardware with galvanized steel cables and integrated SpeedClamp self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot. Average sensitivity of 94.0 dB offers high output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2239 (hanging cable) approved.
Features
Patented BroadBeamHP waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (2-8 kHz, independently verified)
One 8” (203 mm) treated fiber woofer and one 1.42” (36 mm) compression driver (1” exit) mounted to a proprietary cast-aluminum baffle and heat sink
Weatherized components for indoor/outdoor applications
High output (115 dB) and 120 W transformer for the sound reinforcement and PA markets
Patented ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity
Easy-access, five-position selectable tap switch for 25, 70.7, and 100 V applications with transformer bypass position
Includes hanging hardware with galvanized steel cables and integrated SpeedClamp self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot
Average sensitivity of 94 dB offers high output capabilities and reduced amplification costs
UL 1480A and UL 2239 (hanging cable) approved
High quality black or white paint finish. Custom paint colors optional
Optional accessory: surface-mount bracket (ACRS-SM8)
|
Color |
White |
|
UPC |
752830443587 |
|
Manufacturer |
SoundTube |
|
Manufacturer's Category |
HPi High Ceiling Pendant |
|
Height |
17.23 in / 437.6 mm |
|
Width/Diameter |
14.82 in / 376.4 mm |
|
Shipping Weight |
32.15 lbs / 14.58 kg |
|
Carton Height |
19.5 in / 495.3 mm |
|
Carton Length |
18 in / 457.2 mm |
|
Carton Width |
18 in / 457.2 mm |
|
Certifications |
CE, RoHS, UL1480A, UL2239 |
|
Enclosure Properties |
ABS Glass Fiber Reinforced, Injection Molded, Ported |
|
Enclosure Volume |
1288.3 cu in / 21111.45 cu cm |
|
Included Accessories |
Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
|
Optional Accessories |
White Grille (GRL-RS800-WH)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|White Mount Bracket (AC-RS-SM8-WH)|Connector (EUROBLOCK)|White Weatherboot (WEATHERBOOT-L-WH)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|White Split Loom Tubing (AC-SLT-10-WH)|Snap Link (AC-SL1) |
|
Source Inputs |
4 Pin 5.08mm Euroblock |
|
Coverage Angle (±6dB @ 2kHz) |
85° |
|
Crossover Frequency |
2.5 kHz |
|
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) |
4.2 and 3.5 |
|
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) |
5.4dB and 5.4dB |
|
Frequency Response (± 10 dB) |
65 Hz - 22 kHz |
|
Frequency Response (± 3 dB) |
93 Hz - 22 kHz |
|
Grille Properties |
Powder-Coated, Steel |
|
Low Frequency Voice Coil |
1.34 in / 34 mm |
|
Low Pass Crossover |
12 dB per octave 2nd order |
|
Max. Continuous Power RMS |
125W |
|
Max. Program Power |
250 W |
|
Minimum Impedance (O Ohms) |
5.9 O |
|
Network Type: High Pass |
12 dB per octave 2nd order |
|
Nominal Impedance (O Ohms) |
8 O |
|
Tweeter Driver |
1.38" Titanium Compression Driver w/ Waveguide |
|
Woofer Driver |
8" Treated Fiber |
|
Sensitivity dB @ 1W/1M |
94 dB |
|
Sensitivity dB @ 2.83V/1M |
94 dB |
|
Tap Selector |
Rotary Switch |
|
Transformer Options |
25 / 70.7 / 100 V, 8 Ohm direct |
|
Transformer Taps Max. Setting (25V/70.7V/100V) |
15W/120W/120W |
