Item # HD72W-USA
8" LOUDSPEAKER ASSEMBLY WITH 25V/70.7V-4W TRANSFORMER AND 62-8 BAFFLE BAA COMPLIANT
Item # HD72W-USA
8" LOUDSPEAKER ASSEMBLY WITH 25V/70.7V-4W TRANSFORMER AND 62-8 BAFFLE BAA COMPLIANT
- UM: EA
- Estimated Weight: 27.0
- Brand: ATLAS IED

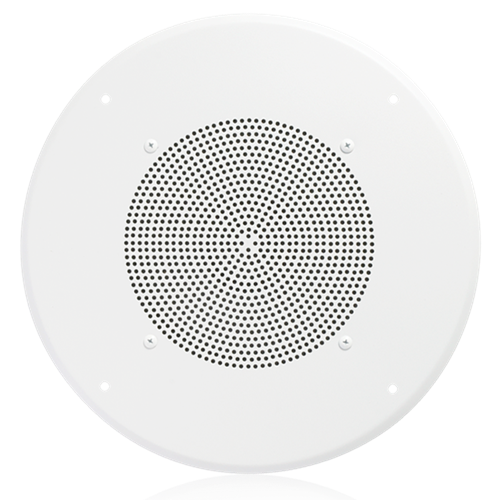

Model HD72W-USA is a cost effective assembly that include high-quality 8" speaker, 70.7V/25V transformer and screw type grill. Unit is shipped assembled, ready for installation and is BAA compliant.The HD72W-USA features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.The HD72W-USA includes a factory mounted dual voltage transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100Hz - 10kHz. Speaker / transformer is factory installed on a 62-8 style baffle.
Features:
- Buy America Act Compliant
- Attractive White Finish
- Easy to Order Speaker/Transformer/Grill Assembly
- Suited for Any Commercial Paging or BGM Application
| Speaker Type | Treated Paper |
|---|---|
| Sensitivity | 97dB Peak, 94dB Average |
| Frequency Response | 100Hz - 10kHz |
| Power Taps | .25, .5, 1, 2, & 4 Watts |
| Dispersion | 105° |
| Depth | 2 7/8" (7.3025 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 4.50 lbs (2.04 kgs) |
| Safety Listed | 1480, 2043 |
| Warranty Period | 60 months from date of purchase |
