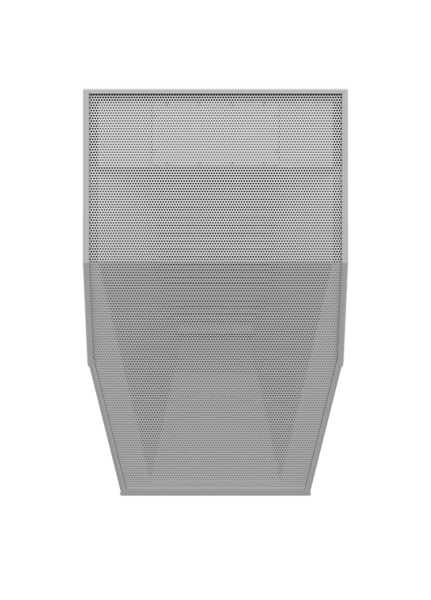

GH60-I-W | GENESIS HORN, 60H X 45V DEGREE COVERAGE, PASSIVE INSTALL VERSION, WHITE
Item # GH60-I-W
GENESIS HORN, 60H X 45V DEGREE COVERAGE, PASSIVE INSTALL VERSION, WHITE
Click image to enlarge
The GH60-I-W loudspeaker features the Synergy Horn, combining three patented technologies: the Synergy Horn, Paraline, and Shaded Amplitude Lens. It contains 18 drivers arranged within a single enclosure that uses 21 horizontal vanes angled downward at 20 degrees to achieve uniform coverage from front to back.
The design delivers a vertical coverage angle of 45 degrees with a 16 dB gain at the most distant listener’s axis, providing consistent sound dispersion from a single point source.
| Coverage Pattern | 60° horizontal |
|---|---|
| Operating Frequency Range | 90 Hz – 16 kHz (-10 dB points) |
| Continuous Output | 133 dB SPL |
| Peak Output | 139 dB SPL |
| Sensitivity | 104 dB SPL |
| Magnitude Response | 90-16 kHz |
| Driver Complement | 8 x 6.5" low drivers |
| Rated Impedance | 4 ohms |
| Power Rating | 1400 Watts continuous |
