Item # FU60
ULTRA-FLAT MOUNT FOR 37" TO 80" FLAT PANEL SCREENS
Click image to enlarge
Item # FU60
ULTRA-FLAT MOUNT FOR 37" TO 80" FLAT PANEL SCREENS
- UM: EA
- Estimated Weight: 5.2
- Brand: CRIMSON

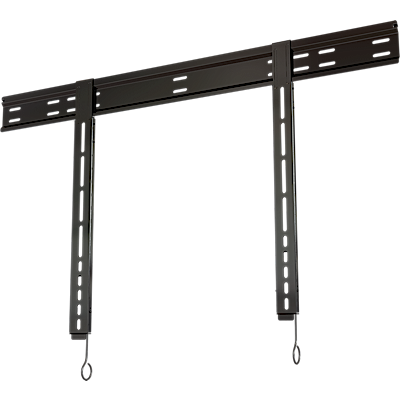

Super slim universal design holds flat panel screens only .39″ (10mm) from wall. A perfect match for today’s slim TVs. Quick and secure “hook and click” installation with built-in kickstand feature that allows easy access for wiring.
Features:
- Universal design
- VESA compatible
- Ultra-flat design holds screen only 0.39″ from wall for a clean look
- Quick and secure “hook and click” installation
- Lateral shift for perfect placement
- Built-in kickstand feature allows easy access for wiring
- Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
| TV size range | 37" – 80" |
|---|---|
| Weight capacity | 150lb (68kg) |
| Max mounting pattern | 826x401mm |
| VESA mounting pattern | 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm |
| Depth from wall | 0.39" (10mm) |
| Lateral adjustment | varies with screen |
| Mounting surface | wood stud, concrete, cinder block or metal stud (accessory required HT6) |
| Stud spacing | dual stud 16", 20", 24" on center, triple stud 16" on center |
| Construction | high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Product weight | 4lb (1.8kg) |
| Package specifications | 36"x4"x2" |
| Color | black |
| Warranty | 10-years |
