Capacity

• Supports up to 6 IPT or FSE transceivers and up to 10 E1 transceivers (1.9 or 2.4GHz)
• Supports up to 100 channels

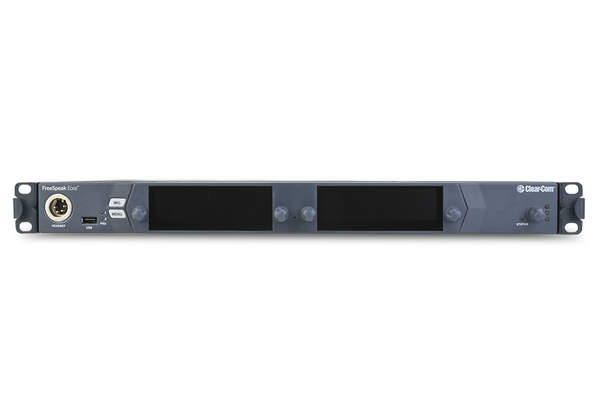

Base Station

• Standard 1 rack unit (RU) device
• High quality 12kHz audio to FS Edge beltpacks
• 2 large full-color touch screen TFT displays
• 4 rotary encoders for gain and menu operation
• Headset connection
• Stage Announce and Prog. Audio cable included
• Functions as PTP Leader Clock

Connectivity

• Wireless 5GHz Edge transceivers and beltpacks
• Wireless 1.9GHz and 2.4GHz FSII splitters, transceivers and beltpacks
• Dante enabled audio devices
• AES67 devices via Dante controller
• 4-wire ports (8 ports RJ45)
• 2-wire ports (4 XLR-3F)
• GPIO (D-type 9 pin)
• LAN – 2 x RJ45, 2 x SFP

Configuration

• CCM browser-based configuration tool
• Direct management with encoders and display

Includes:
(1) Four-Wire PGM/SA Breakout Cable
(CAB-RJ45-PGM-SA)
(1) External PSU (PSU-EXT-001)

*Note: A 1.9 GHz beltpack cannot roam between and E1 1.9 GHz transceiver and an IP 1.9 GHz transceiver. Beltpacks on each system can communicate through the base station.
