Item # FD72W-HC
8” LOUDSPEAKER ASSEMBLY WITH 25V/70.7V-4W TRANSFORMER AND 62-8 BAFFLE WITH HYFIDROPHOBIC® TREATMENT
Click image to enlarge
Item # FD72W-HC
8” LOUDSPEAKER ASSEMBLY WITH 25V/70.7V-4W TRANSFORMER AND 62-8 BAFFLE WITH HYFIDROPHOBIC® TREATMENT
- UM: EA
- Brand: ATLAS IED

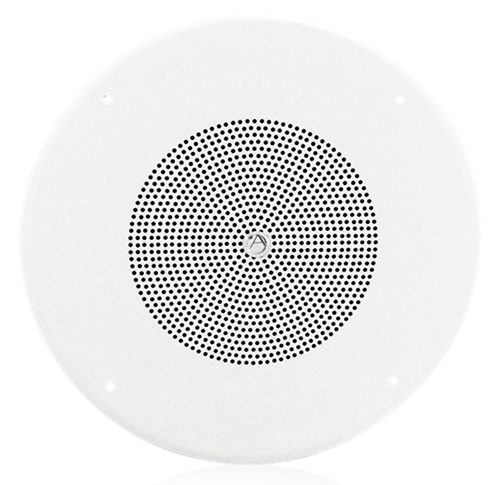

Model FD72W-HC is a cost effective assembly that includes high-quality 8" speaker, 25V/70.7V transformer and Hyfidrophobic treated screw type grill. The FD72W-HC features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance. Speaker / transformer is factory installed on a 62-8 style baffle.
| Speaker Type | Treated Paper |
|---|---|
| Sensitivity | 97dB Peak, 94dB Average |
| Frequency Response | 100Hz - 10kHz |
| Power Taps | .5 , 1, 2, & 4 Watts |
| Dispersion | 105° |
| Depth | 2 5/8" (6.6675 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 3.67 lbs (1.66 kgs) |
| Warranty Period | 60 months from date of purchase |
×
