Item # FC104-HC
4” LOUDSPEAKER 10W @ 8OHM WITH HYFIDROPHOBIC TREATMENT
Item # FC104-HC
4” LOUDSPEAKER 10W @ 8OHM WITH HYFIDROPHOBIC TREATMENT
- UM: EA
- Estimated Weight: 2.0
- Brand: ATLAS IED

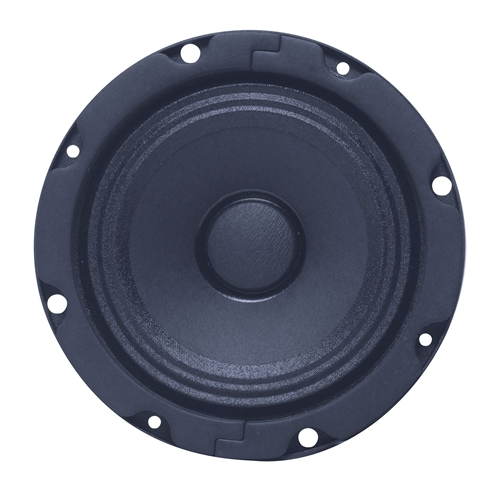

This compact, full-range, 4" (127mm) speaker is equipped with a damped, high-compliance cone which provides excellent low frequency reproduction and smooth extended response. Model FC104-HC also offers a wide dispersion angle which reduces the number of speakers necessary to achieve total coverage in low-level distribution systems. The 10-watt, 8-ohm model (without transformer) offers a frequency response range of 150Hz - 17kHz, sensitivity of 94dB (at 1 watt, 1 meter) and a dispersion angle of 135° (-6dB, 2 kHz octave band). The unit contains a 10 oz. (283g) ceramic magnet with a flux density of 10,500 gauss.
The FC104-HC is factory treated with AtlasIED''s nanotechnology Hyfidrophobic environmental treatment coating.
Features:
- Efficient Wide-Range Frequency Response
- Ideal for Public Address and Background Music Installations
- Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker
- Mounts a Large Selection of Atlas Sound 4" Grilles
- Offers Proven Performance with Wide-Angle Sound Dispersion
- Factory Treated with Hyfidrophobic Nanotechnology Environmental Treatment Coating
| Speaker Type | High Compliance |
|---|---|
| Sensitivity | 94dB (at 1W/1m) |
| Frequency Response | 150Hz - 17kHz |
| Power Taps | 8 Ohms |
| Dispersion | 135° (-6dB, 2 kHz Octave Band) |
| Depth | 2 1/4" (5.715 cm) |
| Diameter | 4" (10.16 cm) |
| Shipping Weight | 2.00 lbs (0.91 kgs) |
