Item # FA81-6

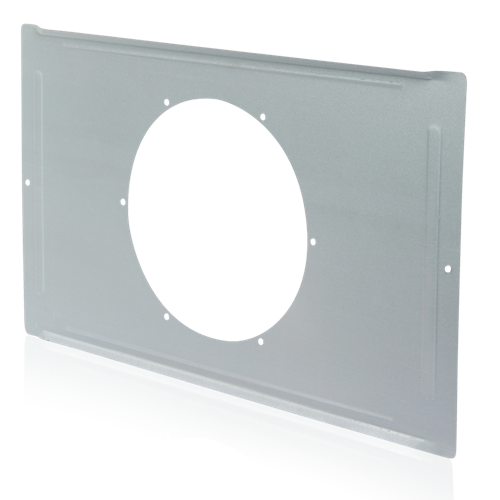

6" TILE BRIDGE FOR STRATEGY SPEAKERS
Click image to enlarge
Item # FA81-6
6" TILE BRIDGE FOR STRATEGY SPEAKERS
- UM: EA
- Estimated Weight: 2.1
- Brand: ATLAS IED
The Strategy Series tile bridge for 6" speakers is designed to prevent ceiling tile sag by distributing the speaker assembly weight to the ceiling’s support members. Model FA81-6 accepts enclosure Model Series FA95-6 and FA97-6, Plaster Ring Model FAPR-6 and is constructed of 24-gauge electro-galvanized steel.
Features:
- Accepts Both FA97-6 and FA95-6 Enclosures and FAPR-6 Plaster Ring
- Constructed of 24-Gauge Electro-Galvanized Steel
- Prevents Ceiling Sag by Distributing Speaker Assembly''s Weight Across Entire Tile
| Height | 23 5/8" (60.0075 cm) |
|---|---|
| Width | 14 1/8" (35.8775 cm) |
| Depth | 1/4" (0.635 cm) |
| Diameter | 8 1/4" (20.95cm) |
| Shipping Weight | 1.00 lb (0.45 kgs) |
| Warranty Period | 60 months from date of purchase |
