Item # FA62T-8MB

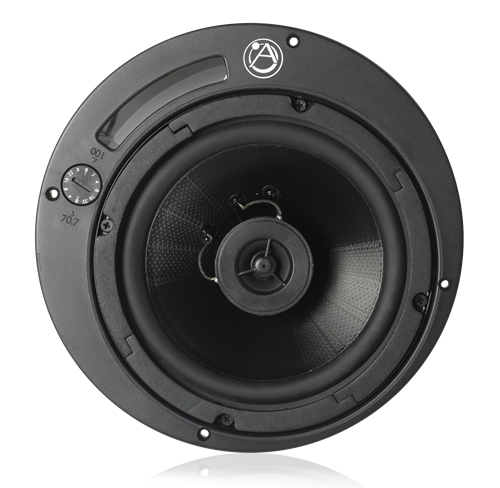

6" COAXIAL LOUDSPEAKER WITH 70.7V/100V-32W TRANSFORMER AND 8OHM BYPASS
Click image to enlarge
Item # FA62T-8MB
6" COAXIAL LOUDSPEAKER WITH 70.7V/100V-32W TRANSFORMER AND 8OHM BYPASS
- UM: EA
- Estimated Weight: 37.6
- Brand: ATLAS IED
Model FA62T-8MB is the entire 6" speaker/ transformer/ selector switch/ front plate assembly found in the FAP62T assembly. The footprint of the FA62T-8MB is identical to a standard FA series 8" speaker component. This footprint allows the motor board to fit into all original Strategy Series 8" enclosures in the exact same manner as a regular 8" FA speaker (FA138Txx).
Features:
- 6" Speaker Installs into 8" Strategy Enclosure (FA97-8)
- Designed for Division of Labor Installations When Enclosures Need to be Installed Before Speakers
- Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
- Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8ohm Direct Coupled Operation
- Tuned Port Maximizes Low Frequency Response from FA97-8 & FA95-8 Enclosure
- UL1480 for General Signaling Listed file UEAY.S1824
| Speaker Type | Coaxial |
|---|---|
| Sensitivity | 88dB Average |
| Frequency Response | 63Hz - 20kHz |
| Power Taps | 2, 4, 8, 16, 32, 8 Ohm direct |
| Dispersion | 110° |
| Depth | 5 1/2" (13.97 cm) |
| Diameter | 8 1/2" (21.59 cm) |
| Shipping Weight | 6.00 lbs (2.72 kgs) |
| Safety Listed | 1480 |
| Warranty Period | 60 months from date of purchase |
