Item # FA136T47
6" COAXIAL IN-CEILING SPEAKER WITH 4W 70V TRANSFORMER
Item # FA136T47
6" COAXIAL IN-CEILING SPEAKER WITH 4W 70V TRANSFORMER
- UM: EA
- Estimated Weight: 4.8
- Brand: ATLAS IED

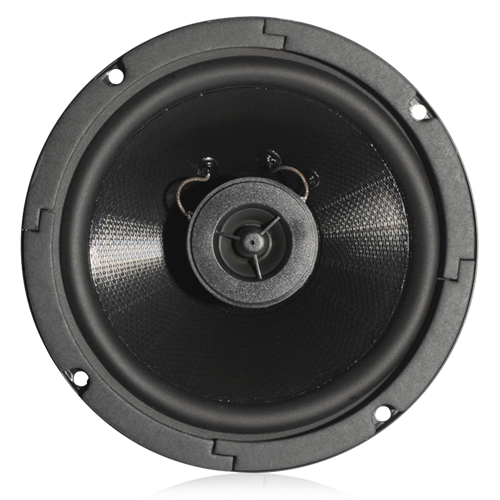

Model FA136T47 is a high-fidelity, coaxial, 6" speaker that delivers 50-watts with full frequency response and wide dispersion. UL listed assembly is manufactured with highquality materials including a Kevlar, fiber-reinforced, polypropylene woofer and a Norsorex synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance. Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferro fluid-cooled voice coil for smooth response and excellent power handling capability.
Model FA136T47 has been engineered as a system with a high performance matched enclosure, choice of transformers and attractive grilles.
Features:
- Achieves Fidelity Similar to an 8" (203mm) System with Wider Dispersion
- Front Loads into Specially Designed, Acoustically Matched Enclosure
- Offers Choice of System UL Listed Components Including Transformers, Acoustic Enclosure, a Tile Bridge, Plaster Ring and Hardware-Free Grilles
- Patented, Easy-to-Install Loudspeaker Mounting System
- Uses Advanced Materials to Deliver 50-Watts with Full Bass and Crisp Highs
- UL Certified, Safety Listed to UL1480
| Speaker Type | Coaxial |
|---|---|
| Sensitivity | 88dB Average, 91dB Peak |
| Frequency Response | 80Hz - 20kHz |
| Power Taps | .5, 1, 2, 4 Watts |
| Dispersion | 130° |
| Depth | 5 1/8" (13.0175 cm) |
| Diameter | 6 9/16" (16.67002 cm) |
| Shipping Weight | 3.67 lbs (1.66 kgs) |
| Safety Listed | 1480 |
| Warranty Period | 60 months from date of purchase |
Documents
