Item # FA134T87
4" COAXIAL CEILING LOUDSPEAKER WITH 70V 8W TRANSFORMER, UL LISTED, WIDE-ANGLE DISPERSION
Item # FA134T87
4" COAXIAL CEILING LOUDSPEAKER WITH 70V 8W TRANSFORMER, UL LISTED, WIDE-ANGLE DISPERSION
- UM: EA
- Estimated Weight: 4.0
- Brand: ATLAS IED

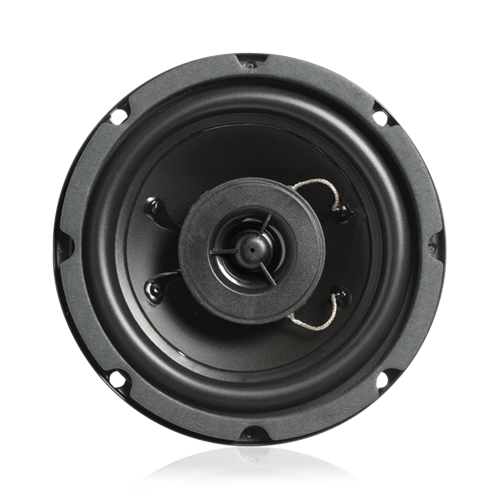

The FA134T87 is a UL listed coaxial 4" (127mm) speaker that handles 25-watts with smooth extended frequency response. The unit''s 130° dispersion angle effectively reduces the number of speakers necessary to achieve total coverage in distributed systems with low ceilings. Model FA134T87 has been engineered as a system with 8-watt high performance 70.7V transformer, optional high performance matched enclosure and choice of attractive grilles (sold seperately).Speakers front-load into the enclosure or may be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-4 instead of an enclosure.
Features:
- 25-Watt, UL Listed, 4" Coaxial Loudspeaker
- Front Loads into Acoustically-Matched System Enclosure, Plaster or Trim Ring
- Patented System Design Provides Easy Installation
- Wide-Angle Dispersion for Excellent Sound Coverage in Rooms with Low Ceilings
- UL Certified, Safety Listed to UL1480
| Speaker Type | Coaxial |
|---|---|
| Sensitivity | 88dB Average, 92dB Peak |
| Power Taps | 1, 2, 4, & 8 Watts |
| Frequency Response | 110Hz - 20kHz |
| Dispersion | 130° |
| Depth | 4.79" (12.17 cm) |
| Diameter | 5.04" (12.8 cm) |
| Shipping Weight | 1.71 lbs (0.77 kgs) |
| Certified to Safety Listing | UL 1480 |
| Warranty Period | 60 months from date of purchase |
