Item # F80A

UNIVERSAL FIXED MOUNT FOR 46" TO 100" FLAT PANEL SCREENS

  • MAP: $199.19 / EA
  • List Price: $248.39 / EA
  • Log in to see if custom discounts apply
  • Case Qty: 1
    Click image to enlarge

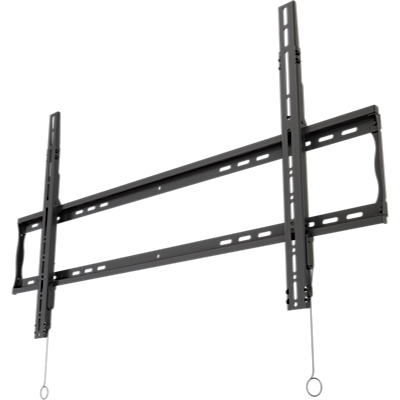

    Item # F80A

    UNIVERSAL FIXED MOUNT FOR 46" TO 100" FLAT PANEL SCREENS

    • UM: EA
    • Estimated Weight: 11.4
    • Brand: CRIMSON

    Adjustable flat wall mount with Universal hole pattern (1096x601mm) to fit a wide selection of flat panel screens. Makes a secure installation quick and easy. Post-installation leveling feature allows for perfect screen positioning even when ceiling is not perfectly level. Click in place screen placement requires no tools to secure the screen on the wall. Pre-installed securing screws are included and may be optionally engaged for additional theft deterrent. Open wall plate design and kickstand feature provides easy access to wiring.

    Features:

    • Post-installation leveling
    • Click in place screen placement without use of tools
    • Optional securing screws locks release latch for additional security
    • Universal design
    • VESA compatible
    • Low-profile, holds screen close to wall for a clean look
    • Open wall plate allows easy access for wiring
    • Lateral shift for perfect placement
    • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
    TV size range 46" – 100"
    Weight capacity 300lb (136kg)
    Max mounting pattern 1096x601mm
    VESA mounting pattern 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm, 1000x600mm
    Post-Installation Leveling +-5ΒΊ
    Depth from wall 1.4" (35.6mm)
    Lateral adjustment varies with screen
    Mounting surface wood stud, concrete, cinder block or metal stud (accessory required HT6)
    Stud spacing dual stud 16", 20", 24" on center, triple stud 16" on center
    Construction high-grade cold rolled steel
    Product finish scratch resistant epoxy powder coat
    Product weight 8.4lb (3.9kg)
    Package specifications 47"x11"x4"
    Color black
    Warranty 10-years
