Item # EZ95-8

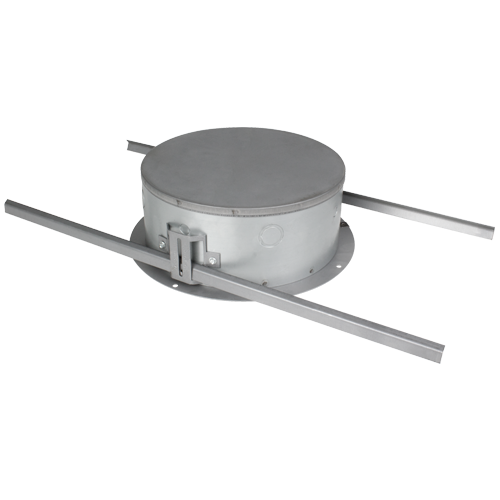

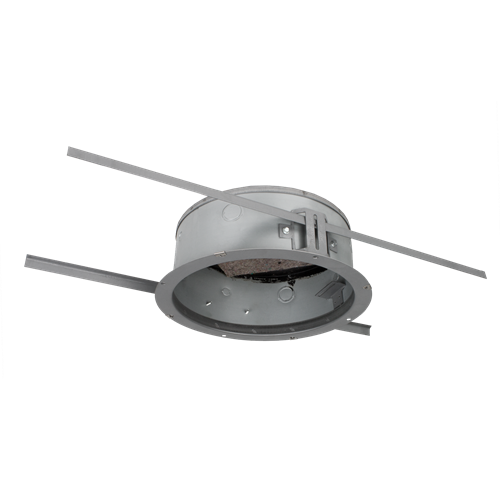

EZ MOUNT RECESSED ENCLOSURE FOR 8" LOUDSPEAKERS
Click image to enlarge
Item # EZ95-8
EZ MOUNT RECESSED ENCLOSURE FOR 8" LOUDSPEAKERS
- UM: EA
- Estimated Weight: 22.0
- Brand: ATLAS IED
EZ95-8 model enclosure is furnished with: four compound combination knockouts (1/2"–3/4", 13–19mm) spaced 90° apart. Four 8–32 J-Clips for screw-mount baffles are installed on the enclosure. The EZ Mount Support System (Patent # 4,484,658) is included on this model which accepts a wide selection of baffles.
Features:
- Accommodates a Wide Selection of Atlas Sound Baffles
- Eliminates the Need for Tile Bridges and Time-Consuming Screw Mounting
- Patented Enclosure/Rail System Installs Easily to Provide Time and Labor Savings
| Depth | 4 1/4" (10.80 cm) |
|---|---|
| Diameter | 9 7/8" (25.08 cm) |
| Shipping Weight | 3.67 lbs (1.66 kgs) |
| Mounts Baffle | 51-8, 60-8(W), 61-8W, (T)62-8, 63-8, 67-8(W), 68-8W, 170-8, G22-8, M222, M222W, P900, T51-8, T60-8, T61-8W,T610-8, T710-8, T720-8A, TM222W |
| Warranty Period | 60 months from date of purchase |
Documents
×
