Item # EVID C8.2HC

8" ENHANCED PATTERN-CONTROL 2-WAY COAXIAL CEILING LOUDSPEAKER WITH PORTED ENCOLSURE/ 70V, 100V, 8OHM

  • MAP: $609.00 / EA
  • List Price: $764.00 / EA
  • Log in to see if custom discounts apply
    EVID C8.2HC 8" ENHANCED PATTERN-CONTROL 2-WAY COAXIAL CEILING LOUDSPEAKER WITH PORTED ENCOLSURE/ 70V, 100V, 8OHM
    Click image to enlarge
    EVID C8.2HC 8" ENHANCED PATTERN-CONTROL 2-WAY COAXIAL CEILING LOUDSPEAKER WITH PORTED ENCOLSURE/ 70V, 100V, 8OHM

    Item # EVID C8.2HC

    8" ENHANCED PATTERN-CONTROL 2-WAY COAXIAL CEILING LOUDSPEAKER WITH PORTED ENCOLSURE/ 70V, 100V, 8OHM

    • UM: EA
    • Estimated Weight: 30.0
    • Brand: ELECTRO-VOICE / BOSCH

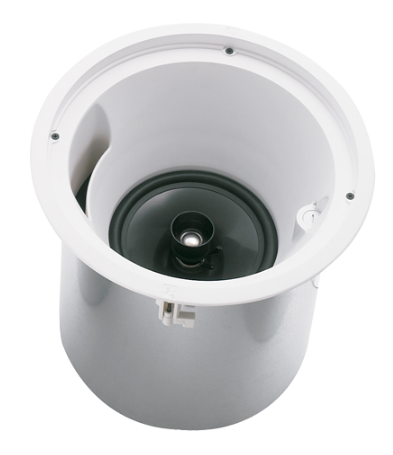

    The Electro-Voice ® EVID C8.2HC is an 8" coaxial transducer featuring an innovative waveguide (patent pending) that provides directivity control to 1 kHz. It provides much better music fidelity and speech intelligibility in spaces with high ceiling heights than typical flush units are capable of. Its 75° coverage pattern provides the same coverage area when used in a 21’ ceiling as a typical flush mount mounted unit in an 8’ ceiling. This loudspeaker system is a complete two-way ceiling loudspeaker package. The package consists of a bezel/waveguide assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker with waveguide coupled titanium coated dome tweeter and internal line-matching transformer.

    FEATURES

    • Maximum fidelity and intelligibility for high ceilings
    • Ported enclosure for extended bass response
    • Waveguide-coupled 1-inch titanium-coated tweeter
    • Full-bandwidth overload protection
    • Integrated transformer for 70 V, 100 V, or 8 O use
    • Front-panel mode/wattage selector
    • Safe, easy installation with included tile bridge and mounting ring
    • White semi-gloss perforated grille
    • Complete package, requires no additional accessories

    Documents

    • EVID C8.2HC 8" High-Ceiling Speaker System Datasheet
    • View / Download
