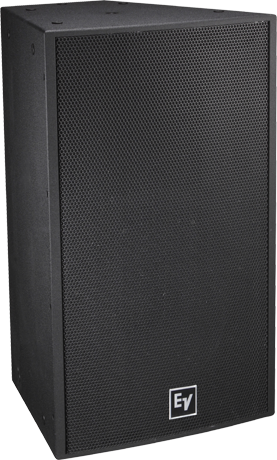

Description: Every EVF trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EV Coat for maximum protection from the elements. EVF‘s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF‘s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.

Features:

• 2-inch ND2B titanium HF compression driver

• Rotatable Constant-directivity waveguide

• Six available patterns with coverage from 40º to 90º

• 101 dB sensitivity, 134 dB maximum SPL

• Power handling: 500 W continuous, 2000 W peak

• 4th-order crossover with HF protection

• Trapezoidal 13-ply birch enclosure in three finishes: EV Coat, PI, and fiberglass (FG)
