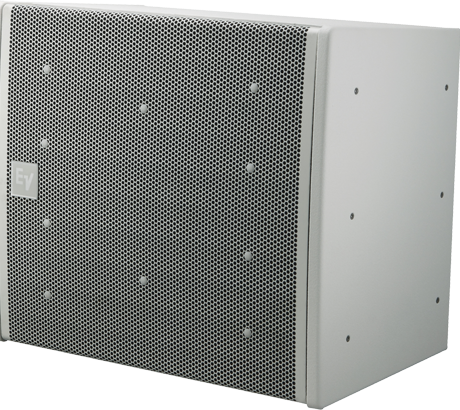

DESCRIPTION: The Electro-Voice EVA Series (Expandable Vertical Array) is designed to provide full bandwidth, well defined coverage from easily created line arrays using four different preconfigured 2-way modules. Two Vertical coverage angles, 6° and 20°, can be combined to create line arrays optimized for spaces ranging from 12m (40ft) to greater than 60m (200ft) deep. Two  horizontal coverge angles, 90° amd 120°, provide the perfect match for any width.

FEATURES:

• High performance, cost-effective

• Ideal for fixed-installation line arrays

• Two array elements in each module

• Two 8-inch low-distortion woofers

• Four 1.25-inch titanium diaphragm HF drivers

• Advanced Hydra(R) plane wave generators

• High sensitivity (104 dB) for high output

• Super-efficient: drive up to 8 boxes from a single amp channel

• Sixth-order passive crossover with HF protection

• Integrated hidden suspension hardware

• Choice of three finishes: indoor, PI and fiberglass

• EVADA (EVA Design Assistant) software tool
