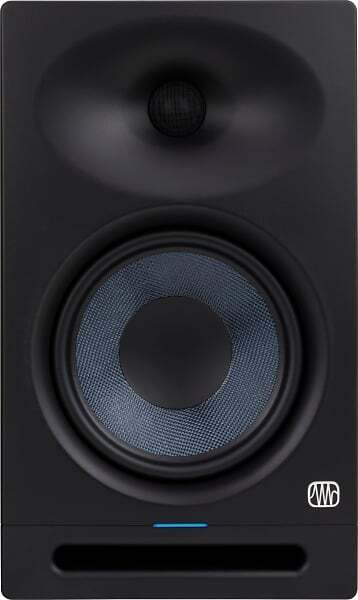

Item # ERIS STUDIO 8

8-INCH 2-WAY ACTIVE STUDIO MONITORS WITH EBM WAVEGUIDE,140W,35 HZ TO 20 KHZ FREQUENCY RESPONSE

  • Call for Price
  • Log in to see if custom discounts apply
    ERIS STUDIO 8 8-INCH 2-WAY ACTIVE STUDIO MONITORS WITH EBM WAVEGUIDE,140W,35 HZ TO 20 KHZ FREQUENCY RESPONSE
    ERIS STUDIO 8 8-INCH 2-WAY ACTIVE STUDIO MONITORS WITH EBM WAVEGUIDE,140W,35 HZ TO 20 KHZ FREQUENCY RESPONSE
    Click image to enlarge
    ERIS STUDIO 8 8-INCH 2-WAY ACTIVE STUDIO MONITORS WITH EBM WAVEGUIDE,140W,35 HZ TO 20 KHZ FREQUENCY RESPONSE
    ERIS STUDIO 8 8-INCH 2-WAY ACTIVE STUDIO MONITORS WITH EBM WAVEGUIDE,140W,35 HZ TO 20 KHZ FREQUENCY RESPONSE

    Item # ERIS STUDIO 8

    8-INCH 2-WAY ACTIVE STUDIO MONITORS WITH EBM WAVEGUIDE,140W,35 HZ TO 20 KHZ FREQUENCY RESPONSE

    • UM: EA
    • Brand: PRESONUS

    Designed for superior performance in both home studios and professional mix rooms, the Eris Studio 8 features a custom-designed EBM (Elliptical Boundary Modeled) waveguide that provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a 1.25-inch, silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.

    The woven-composite, 8-inch, low-frequency driver offers Eris' signature tight, clear bass with plenty of punch. Its 140W of biamped power make the Eris Studio 8 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 8 to reach down to an astonishing 35 Hz - with no subwoofer!

    Features

    • 8-inch woven composite, low-frequency transducer

    • 1.25-inch (31.75 mm), ultra-low-mass, silk-dome, high-frequency transducer

    • 120°(H) x 60°(V) EBM waveguide for a wide sweet spot

    • Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing

    • 140W, Class AB biamplification

    • 35 Hz to 20 kHz frequency response

    • 106 dB SPL (Peak, @ 1 meter)

    • Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)

    • RF interference, output-current limiting, over-temperature, transient, subsonic protection, and amplifier "soft start" feature (eliminates popping on power-up)

    • Internal power supply with IEC connector and power switch with on/off LED

    • Balanced XLR and ¼-inch inputs and unbalanced RCA inputs



    Voltage Requirements

    100-240 VAC, 50-60 Hz

    Connection Type

    IEC

    Cabinet Material

    Vinyl-Laminated, Medium-Density Fiberboard

    Protections

    RF Interference, Output-Current Limiting, Over-Temperature, Turn-On/Off Transient, Subsonic Filter

    Audio Switches

    Acoustic Space (Flat, -2 dB, -4 dB)Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

    Audio Controls

    Volume High Frequency (±6 dB, center 10 kHz, continuously variable); Mid Frequency (±6 dB, center 1 kHz, continuously variable)

    Peak SPL

    106 dB (at 1 Meter)

    Crossover Frequency

    3.5 kHz

    Monitor Inputs

    1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA

    HF Transducers

    1.25” Ultra Low Mass, Silk Dome Tweeter

    LF Transducers

    8" Woven Glass Fiber Composite

    Frequency Response

    35 Hz - 20 kHz

    Input Impedance

    10 kO

    Coverage Pattern

    120 degree (H) x 60 degree (V)

    Monitor Amplifier Power

    140W Bi-Amped
