Item # ERIS STUDIO 4

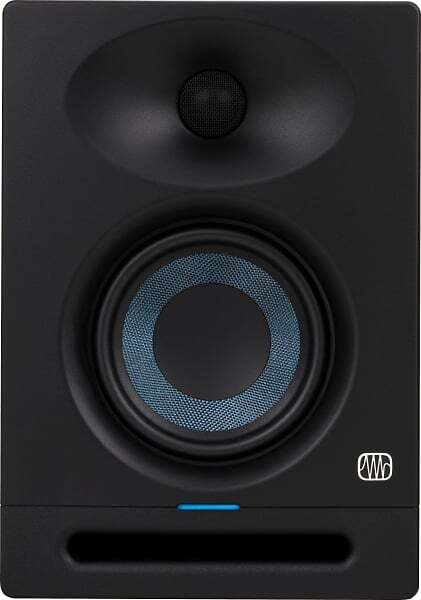

PRESONUS ERIS STUDIO 4 (SINGLE) - 4.5-INCH 2-WAY ACTIVE STUDIO MONITOR WITH EBM WAVE GUIDE

  • Call for Price
  • Log in to see if custom discounts apply
    ERIS STUDIO 4 PRESONUS ERIS STUDIO 4 (SINGLE) - 4.5-INCH 2-WAY ACTIVE STUDIO MONITOR WITH EBM WAVE GUIDE
    ERIS STUDIO 4 PRESONUS ERIS STUDIO 4 (SINGLE) - 4.5-INCH 2-WAY ACTIVE STUDIO MONITOR WITH EBM WAVE GUIDE
    Click image to enlarge
    ERIS STUDIO 4 PRESONUS ERIS STUDIO 4 (SINGLE) - 4.5-INCH 2-WAY ACTIVE STUDIO MONITOR WITH EBM WAVE GUIDE
    ERIS STUDIO 4 PRESONUS ERIS STUDIO 4 (SINGLE) - 4.5-INCH 2-WAY ACTIVE STUDIO MONITOR WITH EBM WAVE GUIDE

    Item # ERIS STUDIO 4

    PRESONUS ERIS STUDIO 4 (SINGLE) - 4.5-INCH 2-WAY ACTIVE STUDIO MONITOR WITH EBM WAVE GUIDE

    • UM: EA
    • Estimated Weight: 11.0
    • Brand: PRESONUS

    The Eris Studio 4 sets a new standard for compact studio monitors. With its surprising amount of low-end and a wide, well-controlled sweet spot, you can enjoy premium, accurate monitoring in even the smallest of mixing spaces. Designed for superior performance in both home studios and small professional mix rooms, the Eris Studio 4 combines flexible connectivity with sonic accuracy that puts it a class all its own.

    The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response that allows you to hear the finest details in your mix, while a wide 120-degree horizontal dispersion creates a broad sweet spot with lifelike stereo imaging. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction.

    The 4.5-inch, woven-composite, low-frequency driver produces tight, clear bass with plenty of punch that defies the Eris Studio 4's space-saving size. The ported enclosure and 50W of biamped power combine to maximize bass response and allow the Eris Studio 4 to reach down to an astonishing 55 Hz - without a subwoofer!

    Features

    • 4.5-inch, woven-composite, low-frequency transducer

    • 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer

    • 120°(H) x 60°(V) EBM waveguide for wide sweet spot

    • Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing

    • 50W, Class AB biamplification

    • 55 Hz to 20 kHz frequency response

    • 100 dB SPL (Peak, @ 1 meter)

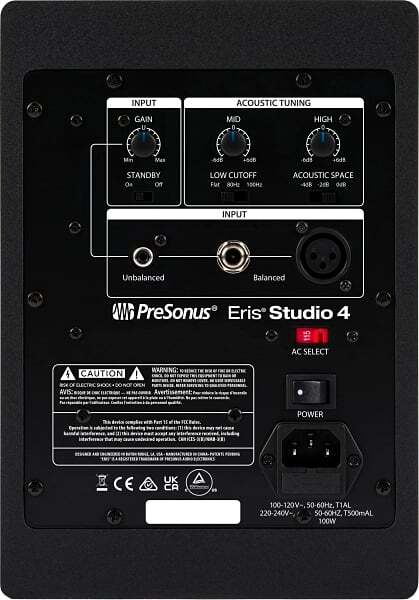

    • Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)

    • RF interference, output-current limiting, over-temperature, transient, subsonic protection and amplifier "soft start" feature (eliminates popping on power-up)

    • Internal power supply with IEC connector and power switch with on/off LED

    • Balanced XLR and ¼-inch inputs and unbalanced RCA inputs



    Voltage Requirements

    100-240 VAC, 50-60 Hz

    Connection Type

    IEC

    Cabinet Material

    Vinyl-Laminated, Medium-Density Fiberboard

    Protections

    RF Interference, Output-Current Limiting, Over-Temperature, Turn-On/Off Transient, Subsonic Filter

    Audio Switches

    Acoustic Space (Flat, -2 dB, -4 dB);Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

    Audio Controls

    Volume High Frequency (±6 dB, center 10 kHz, continuously variable); Mid Frequency (±6 dB, center 1 kHz, continuously variable)

    Peak SPL

    99 dB (@ 1 meter)

    Crossover Frequency

    2.7 kHz

    Monitor Inputs

    1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA

    HF Transducers

    1” Ultra Low Mass, Silk Dome Tweeter

    LF Transducers

    4.5" Woven Glass Fiber Composite

    Frequency Response

    55 Hz - 20 kHz

    Input Impedance

    10 kO

    Coverage Pattern

    120 degree (H) x 60 degree (V)

    Monitor Amplifier Power

    50W Bi-Amped
