Item # EFT-36
HIGH POWER (550 CFM) TOP-MOUNTING FAN PANEL 36" DEEP RACK
Item # EFT-36
HIGH POWER (550 CFM) TOP-MOUNTING FAN PANEL 36" DEEP RACK
- UM: EA
- Estimated Weight: 23.3
- Brand: ATLAS IED

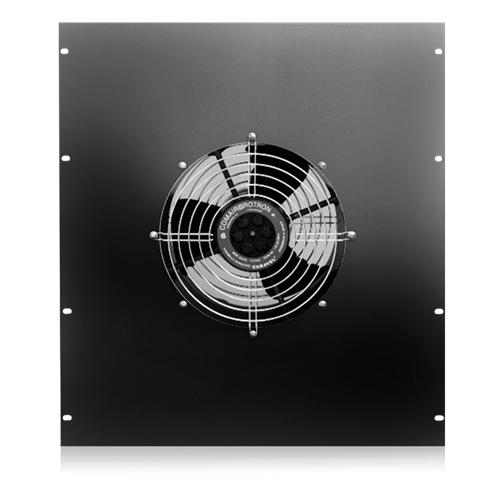

Powerful cooling assemblies are top-mounting fan panels which provide quiet and effective dissipation of heat, for equipment mounted in 36" deep cabinets.Space-efficient units require no vertical panel space and deliver 550 cfm with a 10" diameter tubeaxial propeller fan. Operates at 115VAC, 60Hz and includes a continuous-duty, shade dpole type motor, sealed ball bearings, and chrome plated finger guards. Include an automatic reset thermal protector and six-foot line cord with molded plug mounted to a 16-gauge CRS panel finished in standard black.
Features:
- High Power Tubeaxial Fan Delivers 550 CFM
- Quality Components Assure Dependable and Effective Dissipation of Heat
- Top Mounting Fan Assembly Provides Quiet and Space Efficient Cooling for 19" Wide Cabinets
- For 36" Deep Cabinets
| CFM | 550 |
|---|---|
| Number of Fans | 1 |
| SPL @ 3'' | 55dB |
| Height | 3½" (8.89 cm) |
| Width | 19" (48.26 cm) |
| Warranty Period | 12 months from date of purchase |
