Item # E408-250

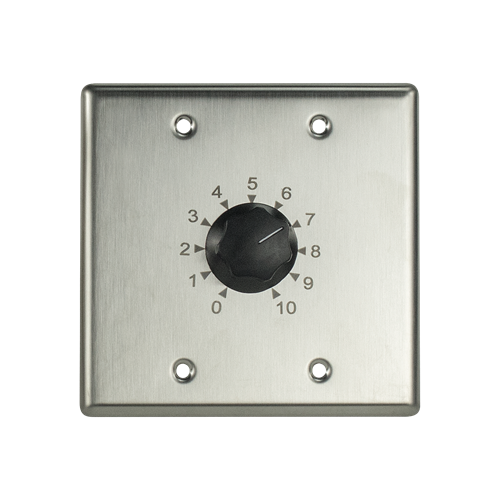

PRECISION, PLATE MOUNTED 250W ATTENUATOR, 1.5DB STEPS / 2 GANG STAINLESS STEEL PLATE
Click image to enlarge
Item # E408-250
PRECISION, PLATE MOUNTED 250W ATTENUATOR, 1.5DB STEPS / 2 GANG STAINLESS STEEL PLATE
- UM: EA
- Estimated Weight: 2.0
- Brand: ATLAS IED
The E408-250 is specially designed for attenuation in masking and sound reinforcement systems where fine tuning of level control is required. It employs a ten-position, non-shorting rotary switch without stop. The attenuation rate is 1.5dB per step. (All other specifications are the same as the AT Series including the UL listing.)
Features:
- 1.5 dB Steps for Sound Masking and Other Precision Applications
- 250 Watt Power Handling
- Wall Plate Mount Only
- For Rack Mounting Use the E408-250-RM
| Plate Size | 2 gang |
|---|---|
| Plate Type | Stainless Steel |
| Power Rating | 250 W |
| Total Attenuation | 15dB |
| Height | 4.56" (11.58 cm) |
| Width | 4.5" (11.43 cm) |
| Depth | 2.51" (6.38 cm) |
| Weight | 1.5 lb (0.68 kgs) |
| Shipping Weight | 1.79 lb (0.81 kgs) |
| Safety Listed | UL813, UL2043 |
| Warranty Period | 60 months from date of purchase |
