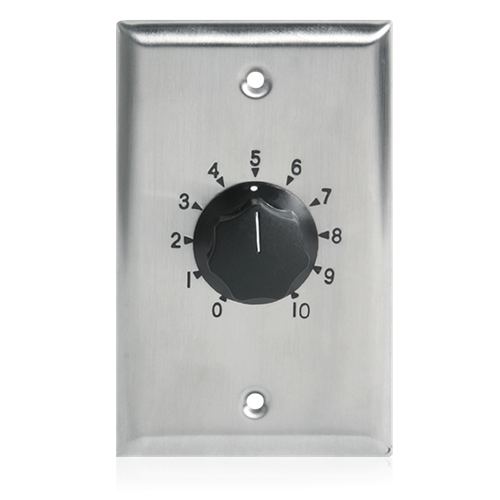

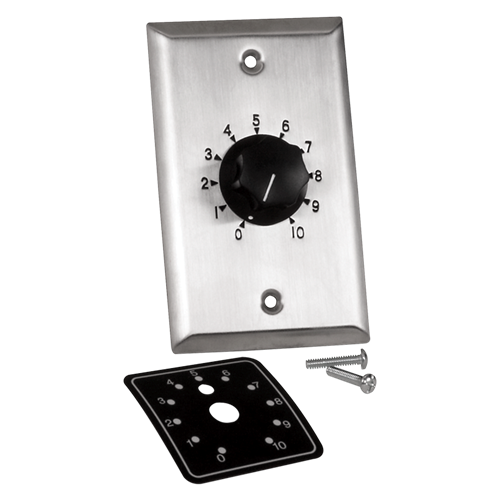

Item # E408-100
PRECISION, PLATE MOUNTED 100W ATTENUATOR, 1.5DB STEPS
Click image to enlarge
Item # E408-100
PRECISION, PLATE MOUNTED 100W ATTENUATOR, 1.5DB STEPS
- UM: EA
- Estimated Weight: 1.1
- Brand: ATLAS IED
Specially designed for attenuation in masking and sound reinforcement systems where fine tuning of level control is required. Employs a ten-position, non-shorting rotary switch without stop. Attenuation rate is 1.5dB per step. (All other specifications are the same as the AT Series including the UL listing.)
Features:
- 1.5 dB Steps for Sound Masking and Other Precision Applications
- 100 Watt Power Handling
- Rack or Plate Mounting
| Plate Size | 1 gang |
|---|---|
| Plate Type | Stainless Steel |
| Power Rating | 100W |
| Total Attenuation | 15dB |
| Height | 4 1/2" (11.43 cm) |
| Width | 2 3/4" (6.985 cm) |
| Depth | 2 5/8" (6.6675 cm) |
| Shipping Weight | 1.00 lb (0.45 kgs) |
| Safety Listed | 813, 2043 |
| Warranty Period | 60 months from date of purchase |
