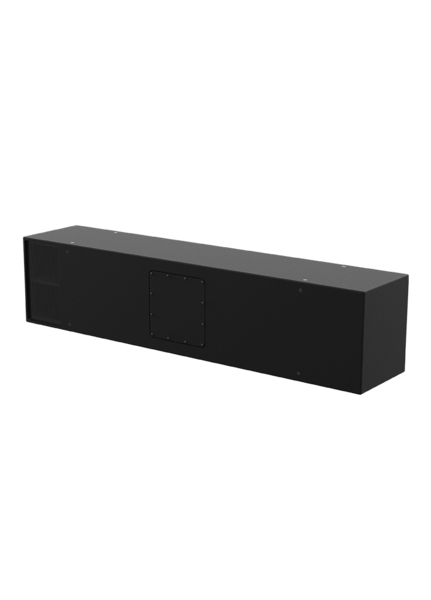

DTS20 | 1 X 12” LONG EXCURSION TAPPED HORN SUBWOOFER - CUSTOM PRODUCT

Item # DTS20

1 X 12” LONG EXCURSION TAPPED HORN SUBWOOFER - CUSTOM PRODUCT

  • Submit Quote for Pricing
  • Log in to see if custom discounts apply
    DTS20 1 X 12” LONG EXCURSION TAPPED HORN SUBWOOFER - CUSTOM PRODUCT
    DTS20 1 X 12” LONG EXCURSION TAPPED HORN SUBWOOFER - CUSTOM PRODUCT
    Click image to enlarge

    The DTS20 subwoofer operates with a frequency response extending down to 16 Hz and maintains distortion levels within single digits. It has a low group delay characteristic, contributing to its sound reproduction accuracy. The unit is designed for applications requiring low-frequency output.

    Operating Frequency Range 18 Hz - 100 Hz (-3 dB)
    Continuous Output 122 dB SPL
    Peak Output 128 dB SPL
    Sensitivity 95 dB SPL (2.83 V at 1 m, half space)
    Magnitude Response 18 Hz - 100 Hz
    Driver Complement 1 x 12" long excursion woofer
    Rated Impedance 8 Ohms
    Power Rating 500 W continuous
    • UM: EA
    • Estimated Weight: 220.0
