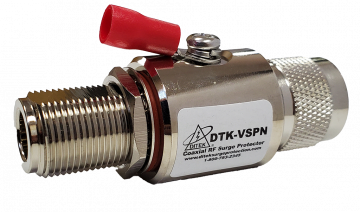

Item # DTK-VSPN
COAXIAL RF SURGE PROTECTOR FOR WIRELESS COMMUNICATOR, N TYPE CONNECTORS, GSM/ANTENNA LINE PROTECTION
Item # DTK-VSPN
COAXIAL RF SURGE PROTECTOR FOR WIRELESS COMMUNICATOR, N TYPE CONNECTORS, GSM/ANTENNA LINE PROTECTION
- UM: EA
- Brand: DITEK
Since antennas are external to the building, they become an avenue for damaging transient surges to enter your building and your equipment through the coaxial antenna cable. The DTK-VSPN surge protector with state-of-the-art circuit technology is ideal for protecting external antenna leads to cellular transmitters, bi-directional amplifiers (BDA) and distributed antenna systems (DAS).
Features
N type connectors protect a variety of coaxial devices
Tightest clamping available provides superior protection
Grounding lug for easy termination
0Hz - 4.75 GHz frequency range
|
Service Voltage |
50VDC |
|
Protection Modes |
Center Pin-Shield |
|
Clamping Voltage |
104VDC |
|
Surge Current Rating |
10,000A |
|
Band Pass Range |
0Hz – 5GHz |
|
Standing Wave Ratio |
1.8:1 @ 4.75GHz |
|
Insertion Loss |
<1.93dB @ 4.75GHz |
|
Impedance |
50 Ohms |
