Item # DTK-MRJEXTS
SINGLE CHANNEL 10GBE POE EXTENDER PROTECTOR– SHIELDED RJ45 CONNECTION
Item # DTK-MRJEXTS
SINGLE CHANNEL 10GBE POE EXTENDER PROTECTOR– SHIELDED RJ45 CONNECTION
- UM: EA
- Brand: DITEK

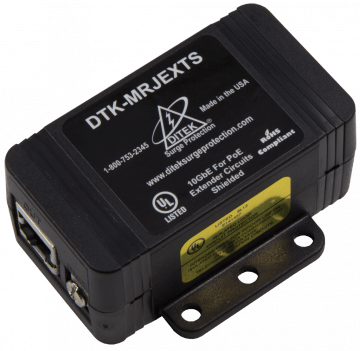

DITEK's single channel DTK-MRJEXTS is designed to be installed on the outputs of long-range PoE Extender devices, and features 10GbE throughput and shielded RJ45 connectors. This point of use surge protector is compatible with CAT5e, CAT6 and CAT6A cabling infrastructure, and when used with STP cabling, the MRJEXTS does not require a separate earth ground.
Features
Uses SAD and GDT technologies for optimal protection
Data speeds up to 10GbE without signal degradation
PoE Plus, HiPoE ready for high-wattage applications
Shielded RJ45 connections with external grounding screw
|
Service Voltage |
<60V |
|
Protection Modes |
Common (All), Differential (All) |
|
Clamping Voltage |
Common Mode: 75V |
|
Differential Mode |
72V |
|
Surge Current Rating |
20kA / Pair |
|
Power Handling |
Up to 144 Watts |
|
Data Rate |
Up to 10GbE |
