Item # DTK-120SLR
120VAC SURGE PROTECTIVE DEVICE WITH LOAD REMOVAL
Item # DTK-120SLR
120VAC SURGE PROTECTIVE DEVICE WITH LOAD REMOVAL
- UM: EA
- Brand: DITEK

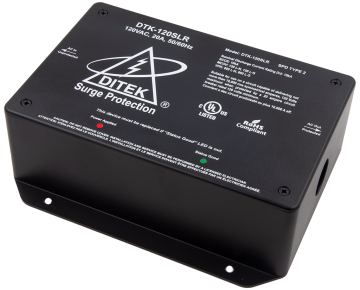

The DTK-120SLR surge protector guards 120VAC power circuits that feed fire alarm control panels, gate motors and other critical equipment. The load removal feature disconnects power to the equipment if compromised.
Features
Series-connected design for fast response and maximum protection
Disconnects power to equipment if compromised
For use on 120VAC single phase circuits up to 20 Amps
UL1283 EMI/RFI noise filtering ensures clean power for connected equipment
UL1449 Type 2 SPD
|
Voltage Configuration |
120VAC Single ? (2W + G) |
|
MCOV |
150V |
|
Protection Modes |
L-N, L-G, N-G |
|
Voltage Protection Rating |
600V L-G, L-N, 1200V N-G |
|
Surge Current Rating |
50,000A |
|
Max Continuous Current |
20A |
|
SCCR |
10,000A |
|
Nominal Discharge Current Rating (In) |
10kA |
|
Operating Frequency |
50/60Hz |
|
EMI/RFI Filtering Attenuation |
Up to 35dB, 100kHz – 100MHz |
