Item # DTK-120/240HDFM

120/240VAC SPLIT PHASE SURGE PROTECTIVE DEVICE

  • MAP: $0.00 / EA
  • List Price: $320.00 / EA
  • Log in to see if custom discounts apply

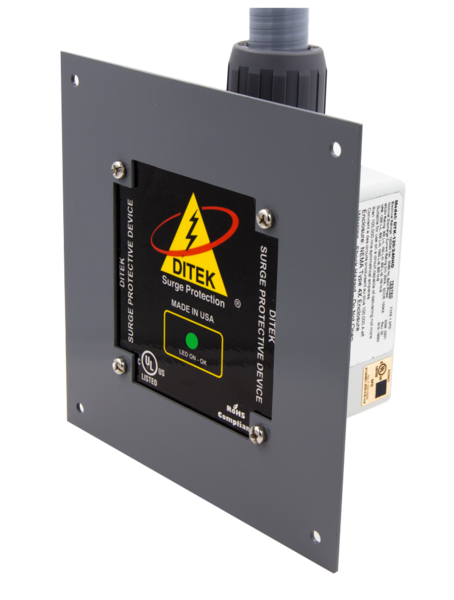

    DTK-120/240HDFM 120/240VAC SPLIT PHASE SURGE PROTECTIVE DEVICE
    Click image to enlarge
    DTK-120/240HDFM 120/240VAC SPLIT PHASE SURGE PROTECTIVE DEVICE

    Item # DTK-120/240HDFM

    120/240VAC SPLIT PHASE SURGE PROTECTIVE DEVICE

    • UM: EA
    • Brand: DITEK

    DITEK's DTK-120/240HDFM is designed to protect 120/240V split phase AC power systems. Its flush mount plate design enables installation next to recessed electrical service panels.

    Features

    • 50,000 Amp per phase surge current rating ensures long service life

    • Included flush mount plate allows for installation next to recessed electrical panels

    • Diagnostic LED indicates system power and SPD function

    • UL1449 Listed Type 1 SPD

    • 5 Year $10,000 Residential Connected Equipment Warranty

    Voltage Configuration

    120/240VAC Split ?, (3W + G)

    MCOV

    150V/300V

    Protection Modes

    L-G, L-L, L-N, N-G

    Voltage Protection Rating

    1000V L-G, 1200V L-L, 600V L-N, N-G

    Surge Current Rating

    50,000A / Phase; 25,000A / Mode

    SCCR

    100,000A

    Nominal Discharge Current Rating (In)

    20kA

    Operating Frequency

    50/60Hz
