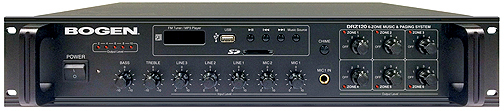

The Bogen DRZ120 is a unique, self-contained 6-zone music and paging system for small- to medium-sized applications. It combines a digital FM tuner / MP3 player with seven (7) MIC & LINE inputs. It has a 120-watt amplifier capable of driving 4-16 ohm or 70-volt speaker systems.

The DRZ120 permits connection of up to six individual paging and music zones. The DRZ120 also features Bass and Treble controls and a 5-segment LED output signal level indicator. The built-in FM tuner uses a PLL synthesizer to provide accurate frequency selection. MP3 audio can be played from files (.mp3 & .wav) accessed via the USB or SD card slots on the front panel.

The MIC1 Input can be set for VOX-activated override/muting of the other audio inputs. Additionally, there is a push-button activated Chime feature that produces a short, melodic series of four ascending bell-like alert tones which are played across all outputs.

FEATURES

• Self-contained, 6-zone music and paging system with FM Tuner, MP3 Player, MIC and LINE inputs

• 120-watt audio output (into 8-ohms)

• For use with 4-16 ohm or 70-volt speaker systems

• Enable from 1-6 zones for music or paging

• 7 total audio inputs - MIC1-4, Line1-3

• MIC1 input uses a front 1/4” TRS connector for a balanced Lo-Z microphone

• MIC1 VOX-activated muting of all other audio inputs governed via a MUTE Control

• RCA inputs for LINE1-3

• Built-in digital FM Tuner, with PLL synthesizer to provide accurate frequency selection

• Auto station search and manual tuning

• Back-lit tuner display, LCD

• FM 75O coaxial antenna connector

• Over 800 FM station presets

• Bass and Treble controls

• Infrared Remote Controller for FM tuner and MP3 player control

• Volume control

• TUNER/MP3 select button

• Preset and scan channel selection

• USB/SD media select

• MP3 play/pause/forward/ backward/repeat options

• EQ mode selection (none, Classic, Jazz, Rock, Bass & Pop)

• Chime button with priority output

• 5-segment LED output level meter

• AUX post-mix LINE output

• Power-on LED indicator

• Rack-mountable with integral brackets

• Listed to UL Standard 60065 for U.S. and Canada

• FCC Part 15 compliant

• Operates from nominal 120V AC, 60 Hz
