Item # DPA1202
2CH/3CH/4CH 1200W NETWORKABLE POWER AMPLIFIER WITH DSP -70V, 100V, 4O & 8O OPTIONS
- MAP: $1,662.99 / EA
- List Price: $2,075.99 / EA
- In Stock
- Log in to see if custom discounts apply
- Case Qty: 2
Item # DPA1202
2CH/3CH/4CH 1200W NETWORKABLE POWER AMPLIFIER WITH DSP -70V, 100V, 4O & 8O OPTIONS
- UM : EA
- Estimated Weight: 11.4

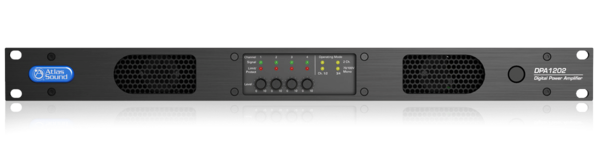

The AtlasIED DPA1202 features a combination of flexibility, performance and control to provide high value features for applications that require more than just great sound. The network based DPA1202 is a DSP controlled 4-channel amplifier that can be configured in three different amplification arrangements to meet the design requirements of any installation.
The unit is factory preconfigured in a two-channel 70V mode. If the design requires four channels of low impedance amplification, the amplifier can be configured as 4-channel model with either 4O or 8O load impedances. Many system designs require both low and high impedance amplification. This unit can be configured to deliver 70V/100V for a paging/background system on a single channel plus two additional 4O/8O amplifier channels for foreground stereo applications.
FEATURES
- Configurable for Use as 2-Channel 70.7V Amplifier
- Configurable for Use as 4-Channel 4O Amplifier
- Configurable for Use as Single Channel 70.7V and 2-Channel 4O Amplifier
- Networkable with On Board GUI
- Configurable DSP Via GUI
- Site Manager Software with Network Auto-Discovery Fault Reporting, Input & Output Status, Standby Status and Remote Activation via a Scheduler Timer
- User Page with Assignable Input & Output Level Control
- Mute Assignments Triggered Via Audio Signal or Contact Closure
- Audio Sense Turn-On/Off
- Four Balanced Inputs
- Optional Accessory Card Slot for 4-Channel Dante™ Receiver Card or (2) Mic / Line, (2) Aux Input Card
- PC, iOS, & Android Compatible
SPECIFICATIONS
Power Output |
2 x 600-Watts @ 70.7V |
Power Output |
2 x 600-Watts @ 100V |
Power Output |
4 x 300-Watts @ 4O |
Power Output |
4 x 150-Watts @ 8O |
Power Output |
1 x 600-Watts @ 70.7V, 2 x 300-Watts @ 4O |
Power Output |
1 x 600-Watts @ 100V, 2 x 300-Watts @ 4O |
Amplifier Topology |
Class AB Switching Hybrid -BASH |
Input Sensitivity |
750mV Balanced, 0dBU |
Input impedance |
Balanced 40k |
Maximum Input Signal |
+14dBU Inputs 1-4, +7dBU Inputs 5-8 with Dante |
THD |
1% @ Rated Output |
Frequency Response |
-3dB 20Hz - 20kHz (DSP Filters Set to Flat) |
Signal to Noise Ratio |
-100dB Below Rated output (A-Weighted) |
Crosstalk |
70dB @ 1kHz |
Voltage |
110V - 120V & 220V - 240V Auto Switch Over, 50/60Hz |
Idle Current |
38W |
Rack Units |
1 |
