Item # DNA-5K4C

4CH AMPLIFIER 1250W PER CHANNEL (CONTRACTOR SERIES - BLANK FRONT PANEL)

  • Call for Price
  • Log in to see if custom discounts apply

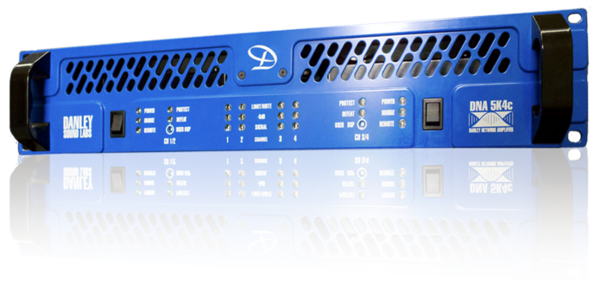

    DNA-5K4C 4CH AMPLIFIER 1250W PER CHANNEL (CONTRACTOR SERIES - BLANK FRONT PANEL)
    Click image to enlarge
    DNA-5K4C 4CH AMPLIFIER 1250W PER CHANNEL (CONTRACTOR SERIES - BLANK FRONT PANEL)

    Item # DNA-5K4C

    4CH AMPLIFIER 1250W PER CHANNEL (CONTRACTOR SERIES - BLANK FRONT PANEL)

    • UM: EA
    • Estimated Weight: 20.0
    • Brand: DANLEY

    Never before has it been possible to economically purchase a shallow, 2U rack mounting, 4 channel power amplifier with this level of flexibility and power density. The 5K4c integrates light-weight power supplies, high-power, sonically-transparent class D amplifiers, full system monitoring (including ‘end of line’), and a fully featured USB or network controlled, 24 bit 96kHz DSP processing platform as standard.



    Features

    • Four channels of sonically pure Class D amplification
    • Unique, precise digital signal processing
    • Over designed switch mode power supply
    • 5,000 watts RMS total output
    • Analog audio inputs
    • No front panel user interface
    • USB/BVNet based software for system operation and monitoring
    • Optional BVNet to Ethernet Bridge devices available for controlling large networks
    • Compact 2RU chassis for high power density



    Rated Power Per Channel

    2 Ohms at 1,250W,
    4 Ohms at 800W,
    8 Ohms at 450W

    Rated Power Bridged Mode

    4 Ohms at 2,500W,
    8 Ohms at 1,600W,
    16 Ohms at 900W

    Indicators and Controls

    • Per Channel: Sig, Limit -6dB. Limit
    • Per Channel Pair: Power, Protect, Bridge, Network, User DSP active
    • Front Panel: User DSP Defeat (Can be disabled with PodWare) Power switch
    • Rear Panel: Two Contact Closure Inputs, Shutdown Input
    • Monitoring Facilities: Input signal Level, output signal level, output current level, temperature, limiter operation, protection system operation, driver impedance.
