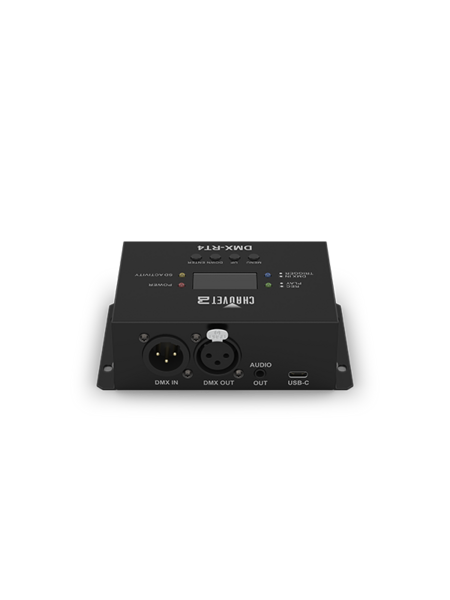

DMXRT4 | DMX RECORDING AND PLAYBACK DEVICE, 4 INDEPENDENT TRIGGERS, USB-C CONNECTOR
Item # DMXRT4
DMX RECORDING AND PLAYBACK DEVICE, 4 INDEPENDENT TRIGGERS, USB-C CONNECTOR
Recording and playing back DMX programming has never been easier than with DMX-RT4. This robust DMX recording and playback device has 4 independent triggers for playback and each trigger can be programmed and activated separately. Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors. The USB-C connector lets you copy, backup and transfer show files while a standard 3.5mm headphone jack connects to external audio systems for amplified playback. Keep your creations safe and secure with password protection. DMX-RT4 also supplies DCvage through terminal block to power specific triggers.
Features
DMX recording and playback device with 4 independent triggers
Each trigger can be programmed and triggered separately
Copy, backup and transfer show files using the USB-C connector
Standard headphone connector (3.5mm) connects to external audio systems for amplified playback
Password protection ensures shows will not be altered
Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors
Supplies DCvage through terminal block to power specific triggers
|
DMX Channels |
3-pin XLR |
|
Inputvage |
12 VDC, 1 A (external power supply - 100 to 240 VAC, 50/60 Hz) |
|
Power and Current |
1 W, 0.03 A @ 120 V, 60 Hz; 1 W, 0.03 A @ 230 V, 50 Hz |
|
Weight |
0.4 lb (0.2 kg) |
|
Size |
4.8 x 3.2 x 1.5 in (122 x 81 x 38 mm) |
|
Approvals |
CE, UKCA, RoHS |
|
Compatible audio formats |
MP3 (32-320kbps), WAV (8 or 16bit only) |
|
Onboard memory |
32 GB |
|
Filename max length (MP3/WAV) |
12 characters |
|
Filename max length (show file) |
11 characters |
|
Trigger Type |
auto, toggle, N/O or N/C |
|
Terminal Block output |
12 VDC, 100 mA |
