Item # DMXAN2
CONVERTER FUNCTIONS AS AN ART-NET TO DMX OR DMX TO ART-NET INTERFACE.
Item # DMXAN2
CONVERTER FUNCTIONS AS AN ART-NET TO DMX OR DMX TO ART-NET INTERFACE.
- UM: EA
- Estimated Weight: 12.0
- Brand: CHAUVET DJ

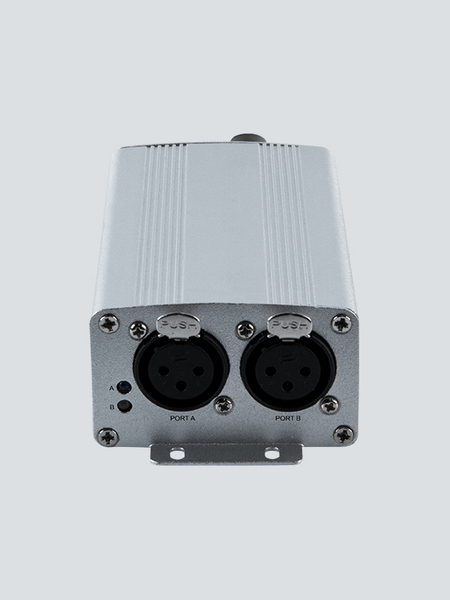

DMX AN2 is a multi-purpose Art-Net/sACN node that converts 1 Ethernet cable to 2 DMX universes. Its optical and electrical isolation is ready for any situation and the durable Neutrik etherCON in/through port ensures reliability. The built-in web-based GUI means no universe/subnet setup. DMX-AN2 automatically redirects the web page if the IP address is changed. The unit supports Power over Ethernet (POE) or an external power supply. Both outputs can be set to either Art-Net or sACN and DMX-AN2 functions as an Art-Net to DMX or DMX to Art-Net interface. Onboard LED indicators quickly inform status and the integrated mounting bracket is included to quickly install into any location.
Features
Multi-purpose Art-Net/sACN node converts 1 Ethernet cable to 2 DMX universes
Optical and electrical isolation is ready for any situation
No universe/subnet setup with the built-in web based GUI
Durable Neutrik etherCON in/through port ensures reliability
Automatically redirects the web page if the IP address is changed
Supports Power over Ethernet (POE) or an external power supply
Both outputs can be set to either Art-Net or sACN
Functions as an Art-Net to DMX or DMX to Art-Net interface
Onboard LED indicators quickly inform status
Integrated mounting bracket to quickly install into any location
Includes
DMX-AN2
Power Adapter
|
DMX Channels |
1024 |
|
DMX Connectors |
3- pin XLR |
|
Input voltage |
(DC): 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz), (POE): 48V 0.4 A |
|
Weight |
0.4 lb (0.2 kg) |
|
Size |
4.7 x 2.5 x 1.5 in (120 x 64 x 39 mm) |
|
Approvals |
CE |
|
Control Protocol |
Art-Net, DMX, sACN |
|
Art-Net Version |
3 |
