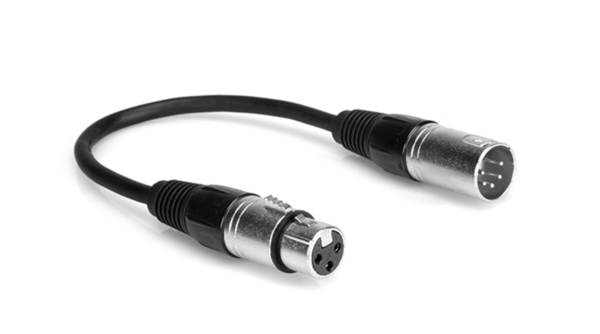

DMX-106 | DMX512 ADAPTOR, XLR5M TO XLR3F, 6 IN

The Hosa DMX-106 is a 6-inch DMX512 adapter cable that converts a lighting controller’s 5-pin XLR male output to a fixture’s 3-pin XLR female input. Built on 110-ohm DMX/RDM-appropriate cable with OFC conductors, a high-density OFC braided shield for superior EMI/RFI rejection, and XLR connectors with internal strain relief for reliability on tour or in permanent installs. Note: its 3-conductor design omits the optional secondary data channel, making it ideal for standard DMX512 signal runs when bridging 5-pin to 3-pin ecosystems.

FEATURES

• XLR connectors with internal strain relief for rugged reliability
• Oxygen-Free Copper (OFC) conductors for enhanced signal clarity
• Hi-density OFC braided shield for superior EMI and RFI rejection

Connectors: XLR5M to XLR3F
Impedance: 110-ohm
