DL95K | DINKY LINK UNIVERSAL IR RECEIVER KIT
Item # DL95K
DINKY LINK UNIVERSAL IR RECEIVER KIT
.jpg)

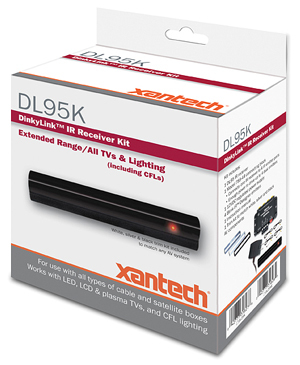

Dinky Link Universal IR Receiver Kit.
The DL95K has a surface-mount design and extended range (up to 120 feet*). For use with all types of cable boxes, satellite boxes, remote controls and TVs. It works with LED, LCD & plasma TVs, and CFL lighting. White, silver & black trim kit included to match any AV system.
Features
Works with all types of cable boxes, satellite boxes, and TVs
Low profile—easy to hide
Proprietary ambient noise-suppression technology for reliable operation in any lighting environment including compact fluorescents
IR modulation frequency bandwidth: 25-60kHz
Reception range: up to 120 ft/36 m*
Color-coded connectors for fast, easy installation
|
Infrared carrier frequency bandwidth |
25 - 60 kHz. |
|
Reception range |
Up to 120 feet. (Depending on remote control output strength and ambient conditions) |
|
Reception angle |
+/- 60 degrees. |
|
Max. Transmission length |
1 mile using 18 gauge wire. |
|
Maximum current output |
100mA. |
|
Dimensions |
2.55” x 0.55” x 0.35” (65mm x 14mm x 9mm). |
|
Power requirements |
+12VDC, 10mA |
* Actual range depends on remote control output and ambient lighting conditions
- Brand: XANTECH
- UM: EA
