Item # CT31A
ROL FT CSTR 300/320 SER CR BLK
Item # CT31A
ROL FT CSTR 300/320 SER CR BLK
- Estimated Weight: 6.0
- Brand: ATLAS IED

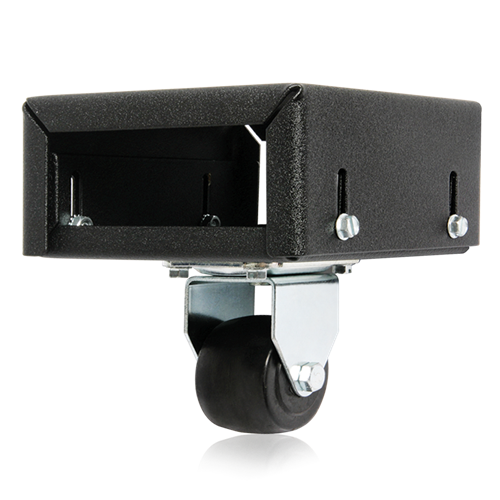

This optional heavy-duty support caster reduces the load bearing requirements of the wall by supporting the center section weight when opened and closed (typically used on 61" panel space models). Cabinet must be mounted 6" from the ground. Support is constructed of formed, 14-gauge CRS and includes heavy-duty, zinc-plated caster with a black, hard-tread wheel. The caster adjusts in height from 5 1/2" to 7 1/2" and is supplied with drilling template for easy installation. Finished in black (Note: before installing the CT31A, the center section guide plate must be removed) (Only one CT31A required per cabinet).
Features:
- Adjustable Height
- Reduces Load Bearing Requirements
| Shipping Weight | 6.00 lbs (2.72 kgs) |
|---|---|
| Warranty Period | 60 months from date of purchase |
Additional Details
