- 8 inputs with 2 outputs of 120-watts of power
- Ideal for commercial and industrial use
- Fanless, space-saving 1U design
- Sleek industrial look with illuminated rings, making them easy to see and operate

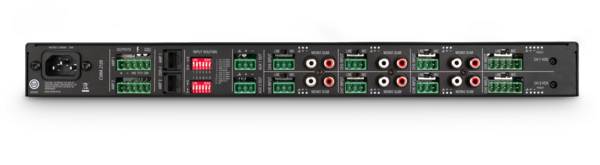

- Euro-block type mic/line input connectors and output connectors
- Independent Bass and Treble controls for each output channel
- Supports 70V and 100V distributed audio systems without the need for a separate transformer
- Remote volume control capability using JBL CSR-V module and standard Ethernet cable
- Priority muting
- Configurable output routing
- Utilizes Crown’s DriveCoreTM technology providing excellent audio performance with high efficiency
- Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
- Includes rack mounting kit
- Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
- Energy Star® Certified
Item # CSMA2120
2 X 120W MIXER AMPLIFIER (8 INPUTS, 2 OUTPUTS), FANLESS, 120W @ 4/8 OHMS AND 70/100V, 1RU FULL-RACK
Click image to enlarge
Item # CSMA2120
2 X 120W MIXER AMPLIFIER (8 INPUTS, 2 OUTPUTS), FANLESS, 120W @ 4/8 OHMS AND 70/100V, 1RU FULL-RACK
- UM: EA
- Estimated Weight: 16.0
- Brand: JBL / HARMAN

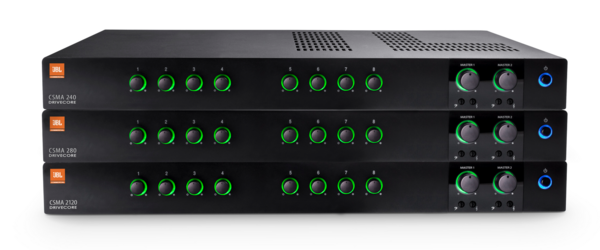

The JBL CSMA2120 is a commercial-grade 2-channel mixer amplifier, delivering 120W per channel for high-performance audio distribution. Designed for background music and paging applications, the CSMA2120 features 8 inputs and Crown DriveCore technology, ensuring energy-efficient, reliable performance. Its fanless, convection-cooled design makes it ideal for quiet environments like restaurants, retail spaces, and corporate settings. The easy-to-use front panel controls, bass and treble adjustments, and priority muting provide seamless audio management. With Euroblock, RCA, and 1/4" inputs, this versatile amp integrates effortlessly into commercial AV systems, making it a top choice for AV integrators and installers.
FEATURES
Documents
×
