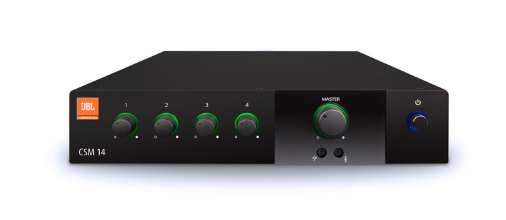

The JBL Commercial Series Mixers integrate technology from multiple HARMAN brands to provide audio mixing solutions for various commercial applications, including background music, security, and paging systems. These mixers are suitable for use in environments such as schools, hospitals, restaurants, and fitness facilities. They include RJ45 connectors designed for compatibility with JBLCSR-V in-wall volume controls. The power supply supports universal AC input voltages ranging from 100 to 240 VAC at 50/60 Hz. The units comply with HARMAN’s GreenEdge standards for energy efficiency, featuring a lightweight and compact design that meets RoHS environmental regulations.

• 4 or 8 inputs with 1 or 2 channel outputs
• Fanless 1U design
• Configurable output routing (2 channel models only)
• Independent bass/treble controls

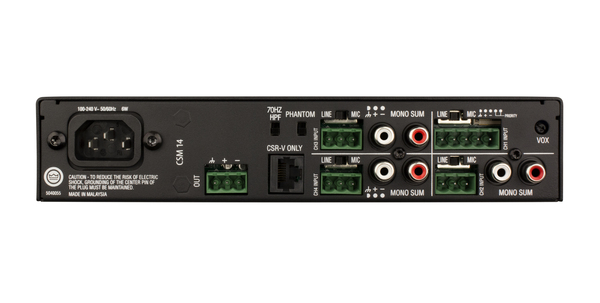

• Euro-block mic/line input and output connectors
• Unbalanced RCA inputs
• Supports JBL CSR-V wall controller via Ethernet
• Priority muting
• VOX ducking
• Phantom power

Inputs	4
Output Channels	1
Input Sensitivity (Mic)	3 mVrms
Input Sensitivity (Line)	775 mVrms
Input Sensitivity (RCA)	300 mVrms
Phantom Power	27 VDC
Configurable Output Routing	No
AC Line Voltage	100 - 240 V, 50/60 Hz
