Item # CONTROLCRV-WH
CURVED-DESIGN DUAL 4" SPEAKER, SELECTABLE 70V/100V OR 4 OHM, INDOOR/OUTDOOR - WHITE
- MAP: $325.00 / EA
- List Price: $325.00 / EA
- Log in to see if custom discounts apply
- Minimum Order Qty: 1
- Case Qty: 4

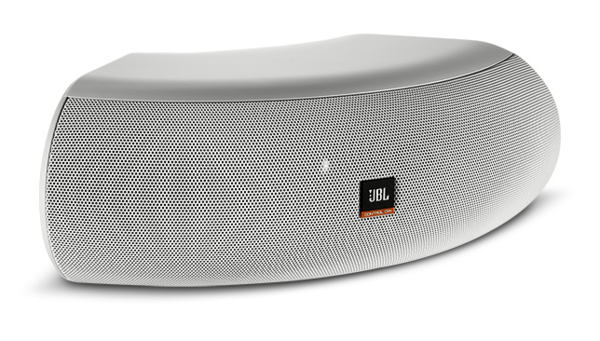

Click image to enlarge
Item # CONTROLCRV-WH
CURVED-DESIGN DUAL 4" SPEAKER, SELECTABLE 70V/100V OR 4 OHM, INDOOR/OUTDOOR - WHITE
- UM: EA
- Estimated Weight: 9.8
- Brand: JBL / HARMAN
Control CRV loudspeaker featuring a 70V/100V transformer. Weather-resistant enclosure. Equipped with dual 100 mm (4 in) woofers. Configurable in half-round or full 360° circular cluster arrangements.
| Frequency Range | 80 Hz – 20 kHz |
|---|---|
| Power Capacity | 75 W continuous pink noise (300 W peak) |
| Transformer | Selectable 70V/100V or low impedance |
| Usability | Indoor/outdoor capable |
| Colors | Black or White |
| Sensitivity | 89 dB, 1W@1m |
| Maximum SPL | 108 dB continuous average long-term (peaks 114 dB) |
| Coverage Angle | 105°H x 80°V |
| Impedance | 4 Ohms |
| Transformer Taps | 30 W, 15 W, 7.5 W (plus 3.8 W @ 70 V only) |
| Drivers | LF Driver: Dual 4" (100 mm), HF Driver: 3/4" (19 mm) |
| Input Connectors | Screw-down terminal strip |
| Baffle | Zinc-plated steel |
| Mounting Hardware | Included wall-mount bracket, optional pole-mount accessory |
| Outdoor Capability | IP-34 rating, exceeds MilSpec 810 for humidity, salt spray, temperature & UV, passes Mil-Std-202F for salt spray |
| Included Accessories | Corner/wall-mount bracket with cap, screws, and trim covers |
