CONTROL HST | CONTROL HST - WIDE-COVERAGE ON-WALL SPEAKER WITH SPLAYED TWEETERS & WALL-FACING WOOFER / BLACK
Item # CONTROL HST
CONTROL HST - WIDE-COVERAGE ON-WALL SPEAKER WITH SPLAYED TWEETERS & WALL-FACING WOOFER / BLACK
- List Price: $456.00 / EA | MAP: $380.00
- Log in to see if custom discounts apply
- Minimum Order Qty: 1
Click image to enlarge

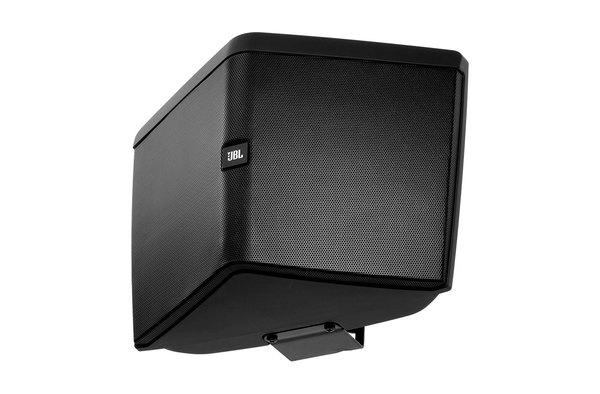

Speaker featuring a 5.25-inch low-frequency driver, dual tweeters, and HST technology designed for wide sound coverage.
| Frequency Range (-10dB) | 50 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 68 Hz – 18 kHz |
| Coverage Angle | 180°H x 160°V |
| Directivity Factor (Q) | 5.4 (1 k – 16 kHz) |
| Directivity Index (DI) | 7.2 dB (1 k – 16 kHz) |
| System Power Rating (IEC) | 100 W (400 W peak), 2 hrs; 75 W (300 W peak), 100 hrs |
| Sensitivity | 88 dB (Ave. 80 Hz – 20 kHz) |
| Maximum SPL (1m) | Direct 8 ohm: 108 dB (peaks 114 dB); 60 W Tap: 97 dB @ 60W |
| Crossover Network | 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF |
| Impedance | 8 ohms |
| Transformer Taps | 70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W |
| Drivers | LF: CMMD ceramic metal matrix diaphragm cone, 25 mm voice coil; HF: Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, fluid-cooling |
| Enclosure | Fiberglass-reinforced ABS |
| Attachment | Four M6 points for U-bracket; additional M6 insert for safety cable; must use U-bracket; wall mount only |
| Baffle | Aluminum, painted to match cabinet color |
| Input Connectors | Removable locking euro-block 4-pin with screw terminals; two pins input, two pins parallel loop-through; max wire 12 AWG (2.5 mm2) |
| Outdoor Capability | IP54 per IEC529; exceeds Mil Spec 810 for humidity, salt spray, temperature & UV; meets ASTM G85 salt spray |
| Colors | Black (RAL9004) |
| Included Accessories | U-bracket, color-matched, zinc-rich extra-thick powder coated steel |
| Mounting Hardware | Included wall-mount bracket |
